Klaas
K700
Aluminium Mobile Crane
Capacity: 1.600kg / 3.000kg
Max. hook height: 34.50m
Max. extension length: 36.50m
Machine weight: 7.500kg
Product overview
The K700, with a hook height of 34.5 m and a maximum load capacity of 3 tonnes, is equipped with many technical features that considerably simplify the daily work of roofers, carpenters and facade builders. Its compact dimensions and enormous lateral reach are impressive. For example, the K700 can transport loads of 250 kg to work areas 30 m away. Equipped with a double hydraulic, telescopic fly jip, it is the ideal crane in urban areas.
Specifications
- Hook load (stand./opt.) – 1.6 /3.0 t
- Hook height – 34.5 m
- Total weight – ≥ 7.49 t
- Boom length – 36.50 m
- Outrigger width (min.) – 3.03 m
- Outrigger width (max.) – 5.29 m
- Towing capacity – 1.600 kg
- Boom (1.600 kg – 350 kg) – 5,00 – 11,65 m
- Extension 3 (250 kg) – 13.90 m

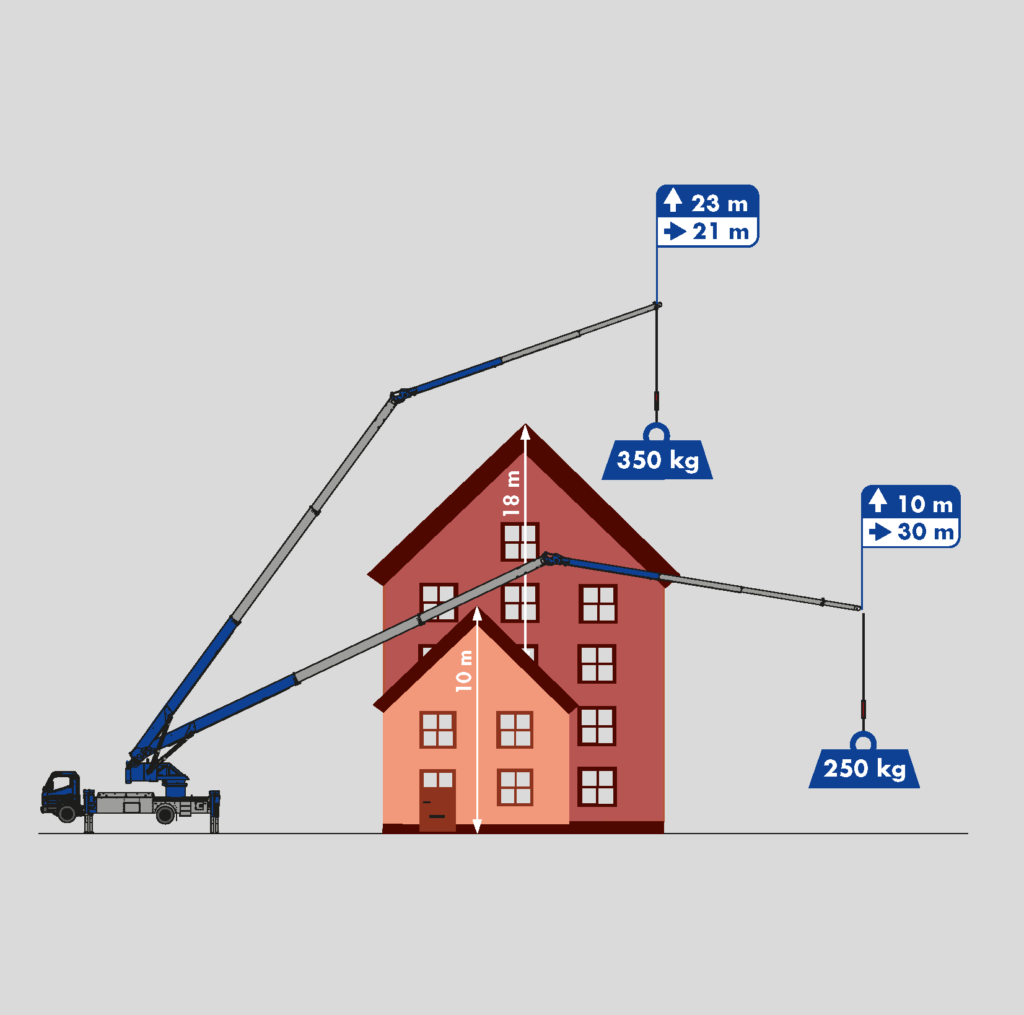

Working area

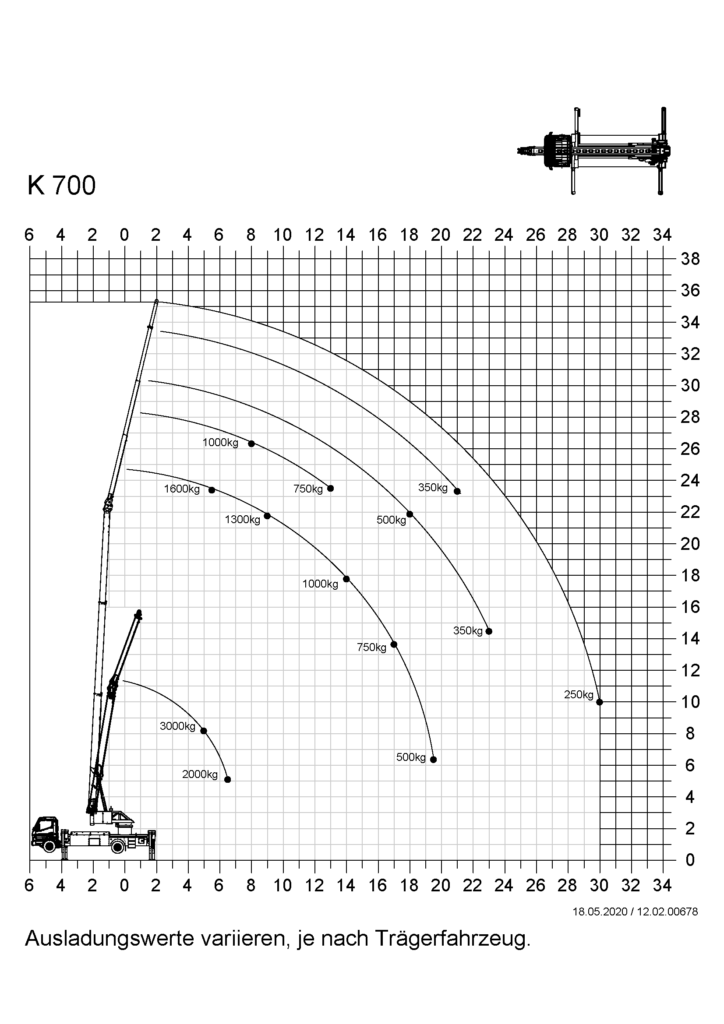

Crane operation

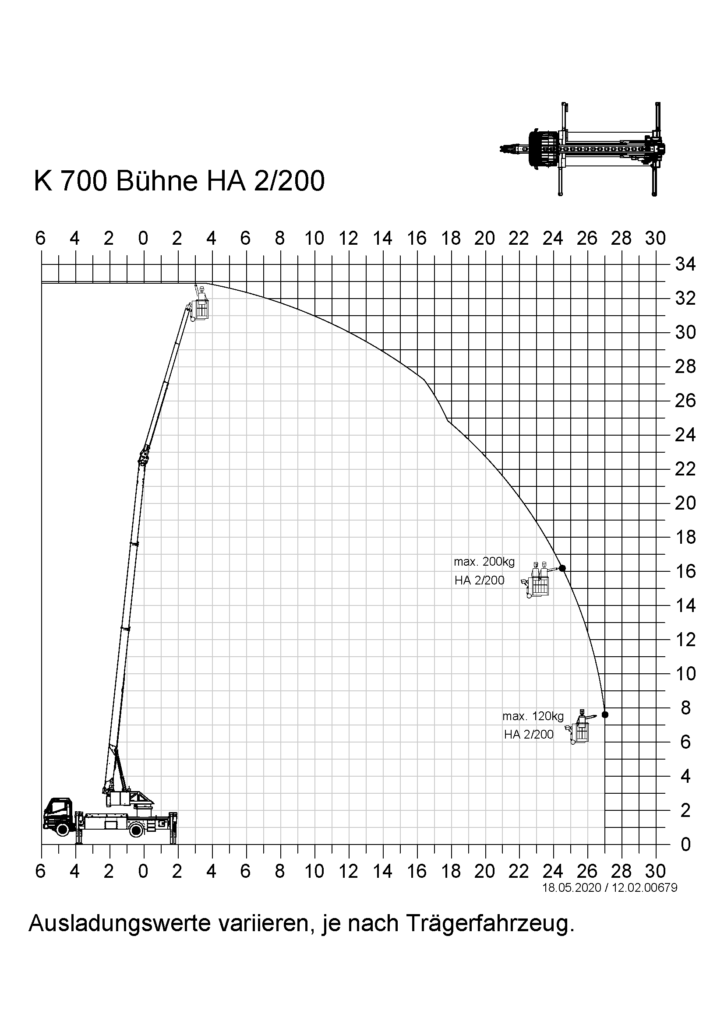

Platform operation (HA 2/200)
Gallery
The German manufacturer Klaas has been a leader in innovative lifting solutions since introducing the first aluminum crane in 1993. With over 5,000 mobile and trailer cranes sold worldwide, they’ve earned the top spot in the industry. Known for their commitment to quality, Klaas produces most components in-house and is ISO 9001 certified, ensuring reliability and customer-focused solutions. From mobile cranes to rescue vehicles, Klaas offers high-performance, lightweight products tailored to diverse needs. Click here for more information.
