Klaas
K23-33 RS City
Aluminium Mobile Crane
Capacity: 1,500kg
Max. hook height: 32.8m
Max. extension length: 34.1m
Machine weight: 3,500kg
Product overview
The K23-33 RS City with a hook height of almost 33 m has been one of Klaas’ most popular trailer cranes for many years. With its lateral range of 23 m with a load of 250 kg, it features an enormous radius of action. The aluminium crane can be converted into a work platform in a few minutes without tools, thus enabling varied, safe work on the building site. Thanks to its self-drive mechanism it is able to manoeuvre into suitable gap with pinpoint accuracy and be shortened to 7 m due to its retractable drawbar. As a single axle model with a low net weight of 3.5 t, it is also easy to handle in tight spaces
Specifications
- Hook load (stand./opt.) – 1,500 / – kg
- Hook height – 32.8m
- Total weight – ≥ 3.5t
- Extension length – 34.10m
- Support width (min.) – 2.85m
- Support width (min.) – 3.60m
- Support width (max.) – 5.04m
- Winch pulling force – 1,500kg
- Boom (1,500 kg) – 4.97m
- Pull-out 1 (800 kg) – 8.26m
- Pull-out 2 (500 kg) – 10.39m
- Pull-out 3 (250 kg) – 12.31m
- Vehicle dimensions – 9,24 x 2,27 x 2,59m
- Towing capacity – 3.50t

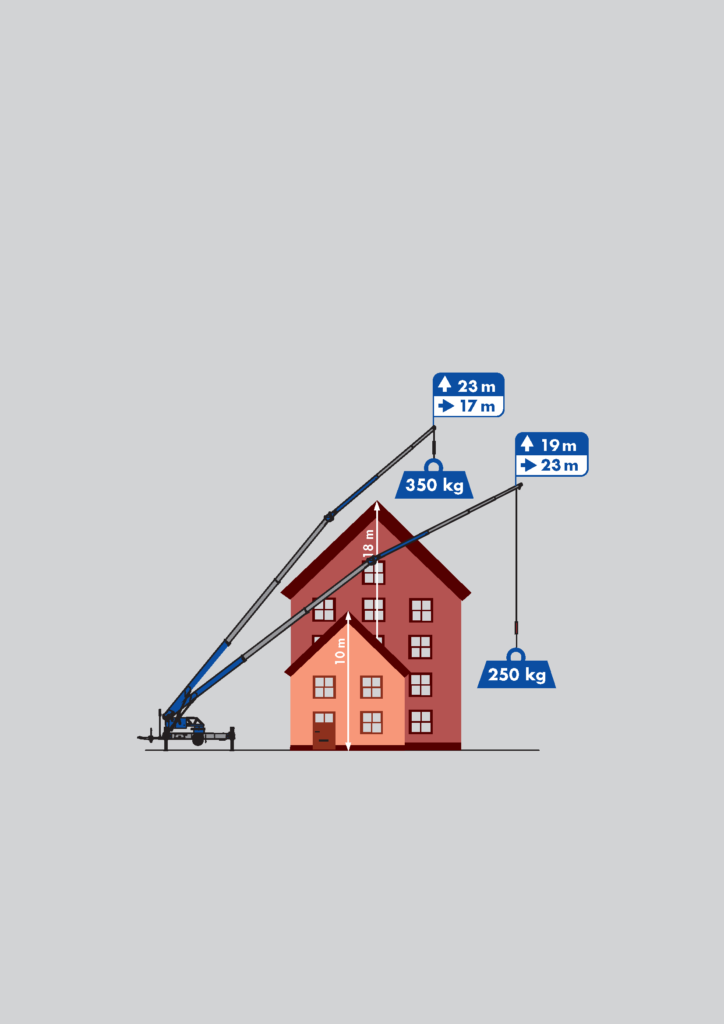

Working area

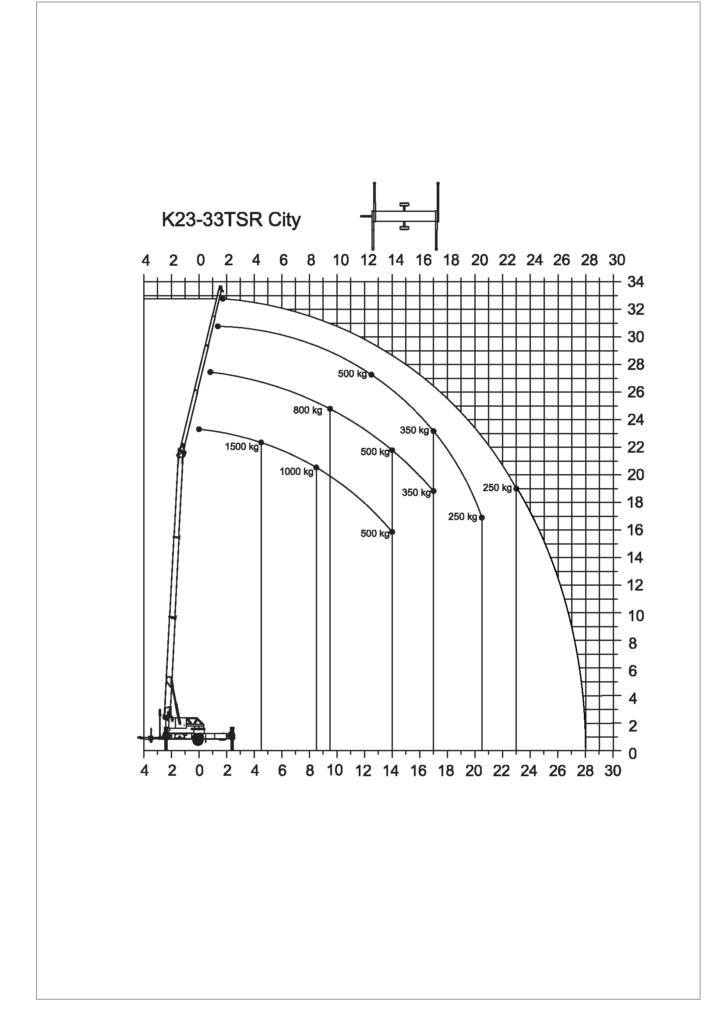

Crane operation

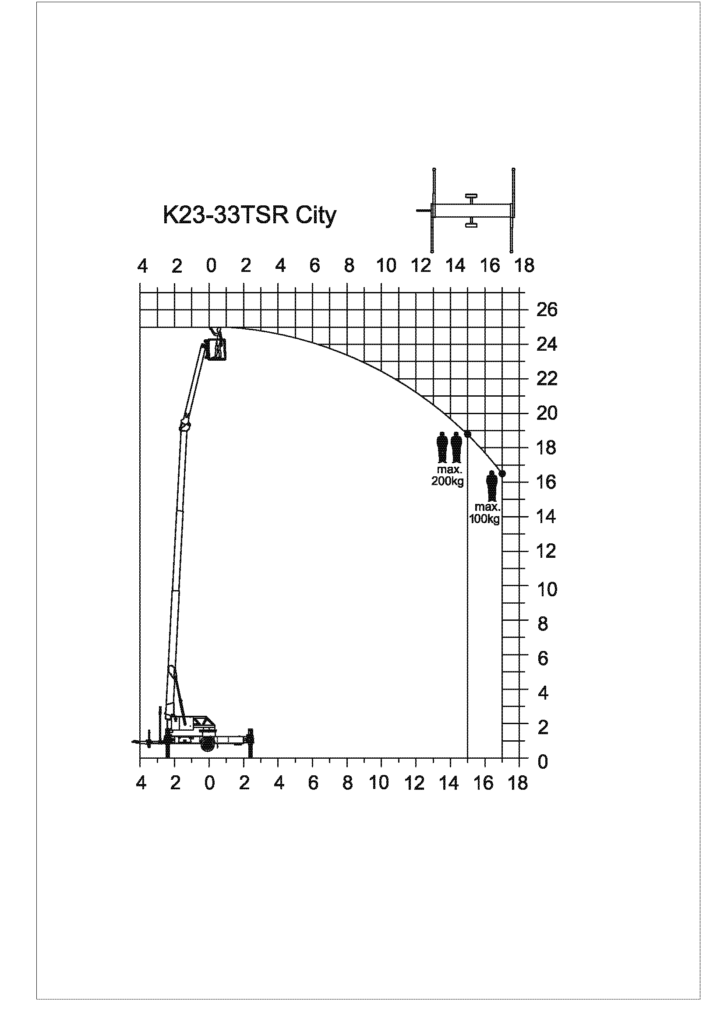

Platform operation
