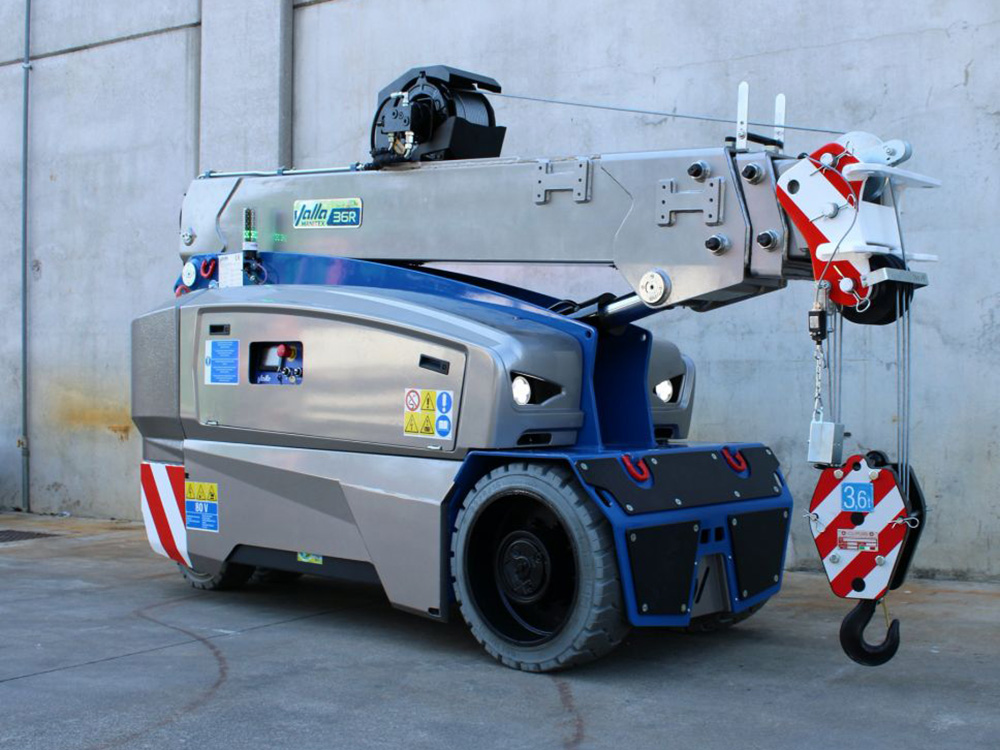

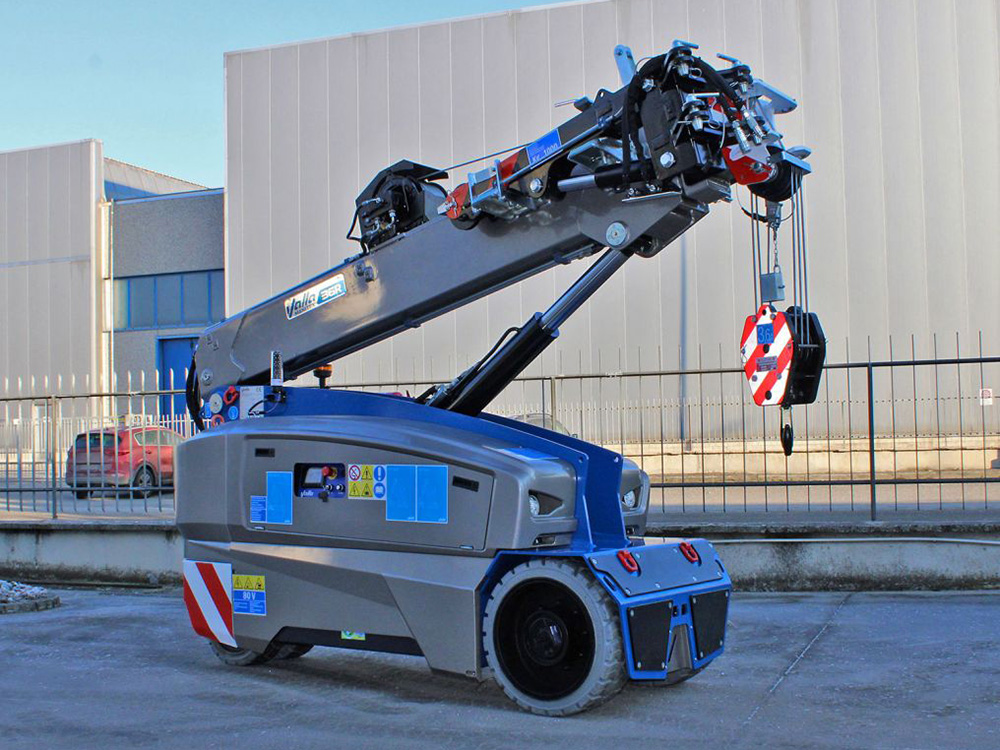

Valla
V36R
The original Pick & Carry Crane
Max payload 3.600 kg
Total weight 3.900 kg
Dimensions 2.465 x 900 x 1.560 mm
Full electrical power unit
Zero impact
Product overview
Max payload
3 600 kg
Total weight
3 900 kg
Dimensions
2.465 x 900 x 1.560 mm
Fully electrical power unit
Battery powered
Zero impact
Environmentally friendly
Valla
Valla is the world leader in the manufacture of industrial self-propelled cranes. From 1945 to the present, they have sold over 10 000 cranes and profoundly transformed the market through the constant development of innovative technologies.
Specifications
FRONT N° 2 Cushion 22x8x16
REAR N° 2 S.E. 16×6-8
HYDRAULICS 220 Bar – 8 kW AC
FRONT-WHEEL DRIVE 2 x 1,9 kW AC
REAR STEERING 600 W AC – 180°
BATTERY 80V – 300 Ah
COUNTERWEIGHTS 940 kg
BRAKES Electro brakes
Options:
Winch kit
Foldable hydraulic jib with rest position on boom
Foldable hydraulic jib with rest position on boom
Foldable 2-position manual jib
4-position manual jib + fixed foldable extension with rest position on boom
9-position manual jib + fixed extension
Pulley kit
Black wheels
Light kit

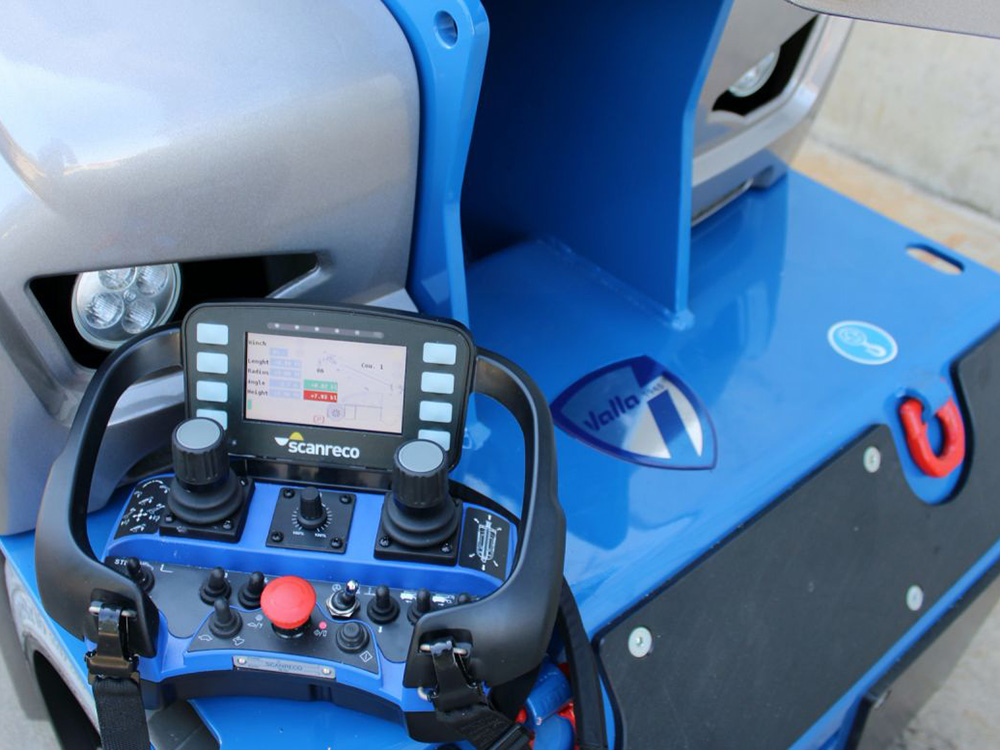

Remote Control
9-position manual jib + fixed extension
Pulley kit
Black wheels
Light kit
Remote Control
Battery Charger
Tool compartment
ATEX transformation
Valla Connect System
Customized Color
