Klaas
K1003
Aluminium Mobile Crane
Capacity: 3,000kg / 6,000kg
Max. hook height: 52.2m
Max. extension length: 54.0m
Machine weight: 22,000kg

Product overview
The Klaas K1003, with its hook height of almost 53 meters and a maximum lifting capacity of 6 tonnes, is one of the large Klaas truck cranes. It is mounted on a three-axle truck with a rear steerable axle. Thus manoeuvrability and comfortable handling are ideally combined with the enormous reach of the aluminium boom. The K1003 works with a dual telescopic fly jib, on which both extensions can be extended simultaneously and to the same extent. This means that the weight being carried is optimally distributed and the fly jib can be used extensively even in tight construction situations.
Specifications
- Hook load (stand./opt.) – 3.0 /6.0 t
- Hook height – 52.2 m
- Total weight – ≥ 22 t
- Extension length – 54.00 m
- Support width (min.) – 3.04 m
- Support width (max.) – 5.94 m
- Winch pulling force – 3,000 kg
- Boom (3,000 kg – 1,000 kg) – 6,61 – 15,45 m
- Pull-out 3 (350 kg) – 18.39 m

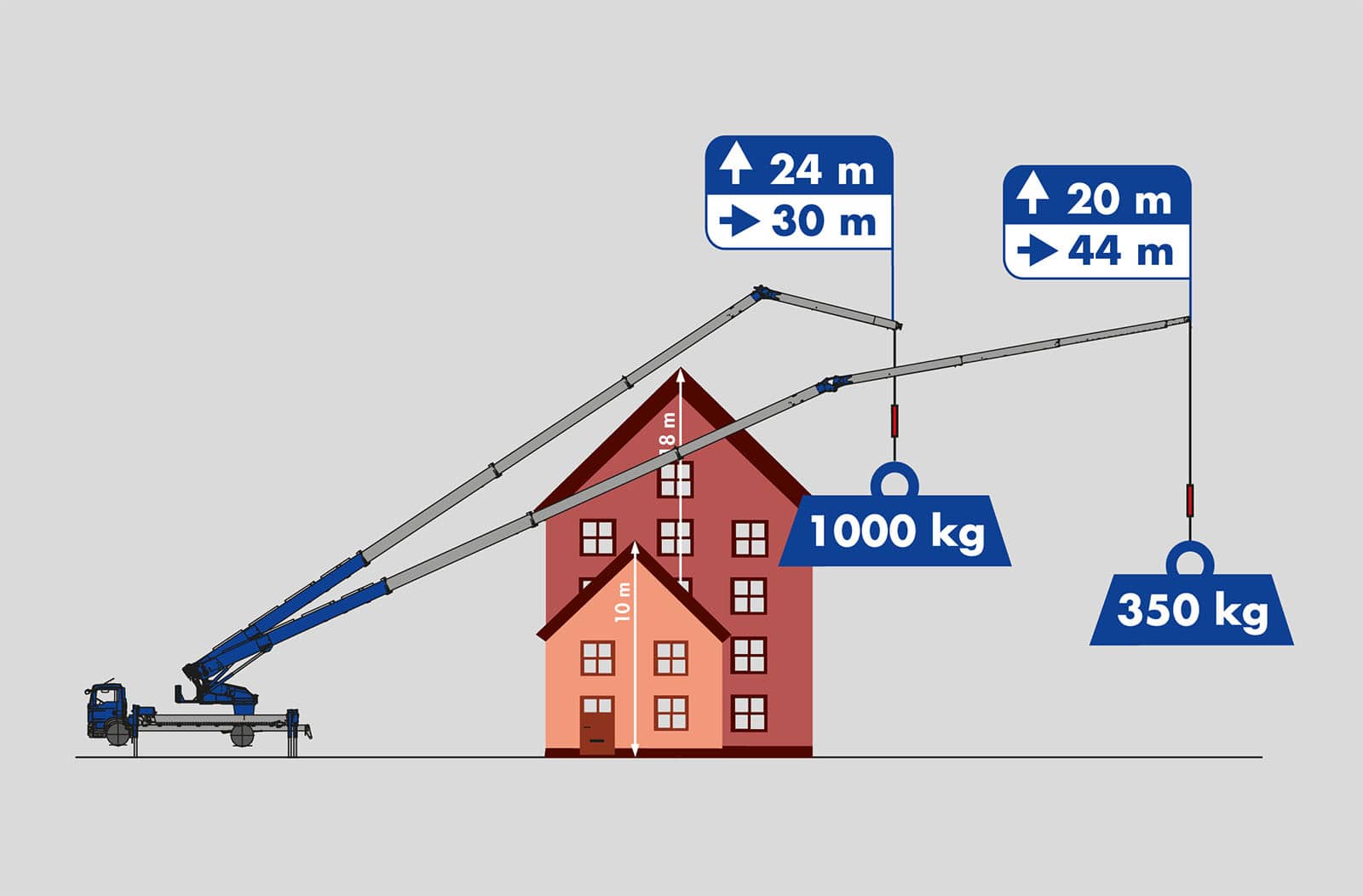

Working area

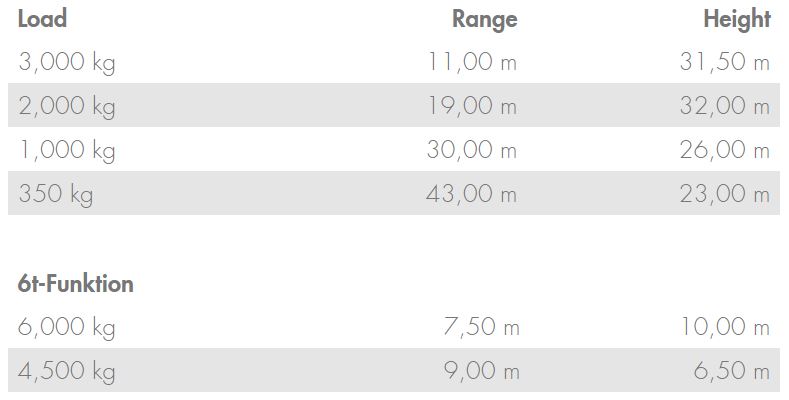

Crane operation

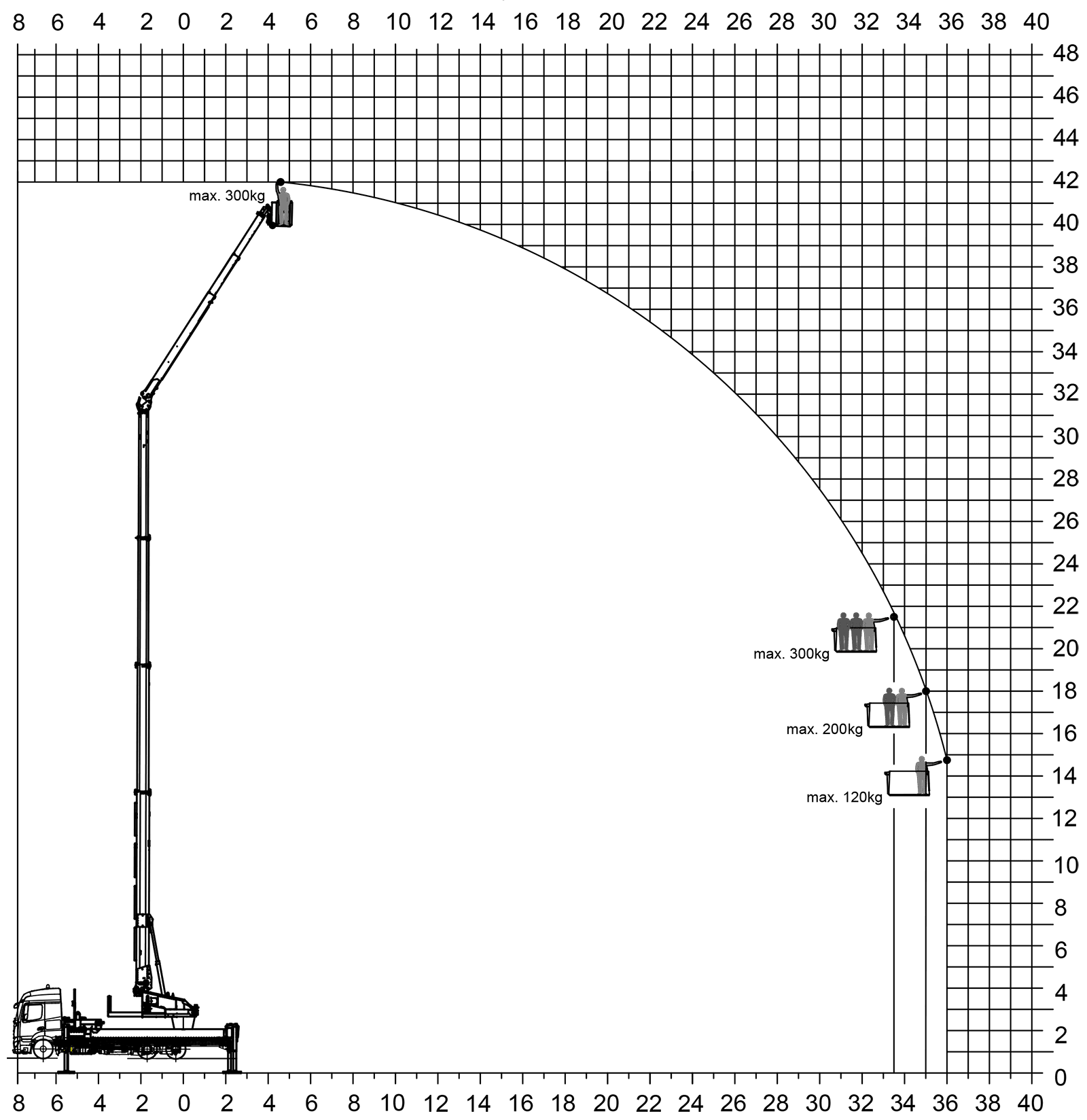

Platform operation (HA 2/200)
Platform operation (HA 3/300)
