Klaas
K350 E
Aluminium Trailer Crane
Capacity: 1,600 kg
Max. hook height: 31.0 m
Max. extension length: 32.8m
Machine weight: 3,500 kg
Product overview
The K350 E is a trailer crane in the 3.5-tonne class with state-of-the-art equipment, high driving comfort and excellent performance values. Its maximum load is 1,600 kg, and its lateral reach with a load of 250 kg is an impressive 22 metres. Another plus point is its battery-powered electric motor, which allows it to be operated completely self-sufficiently and sustainably. A large lithium battery is used to store energy and can be charged at any conventional 230-volt socket. Charging can also be carried out while the crane is in operation, although this is not necessary due to a consumption-oriented setting and the strong battery power. The K350 E can easily be used for a whole working day without recharging.
Specifications
- Hook load (stand./opt.) – 1,6 t
- Hook height – 31.0 m
- Total weight – ≥ 3,5 t
- Extension length – 32.80 m
- Outrigger width (min.) – 3.60m
- Outrigger width (max.) – 5.04 m
- Winch capacity– 1,600 kg
- Boom – 4,29 – 8,50 m
- Extension 2 (500kg) – 10,70 m

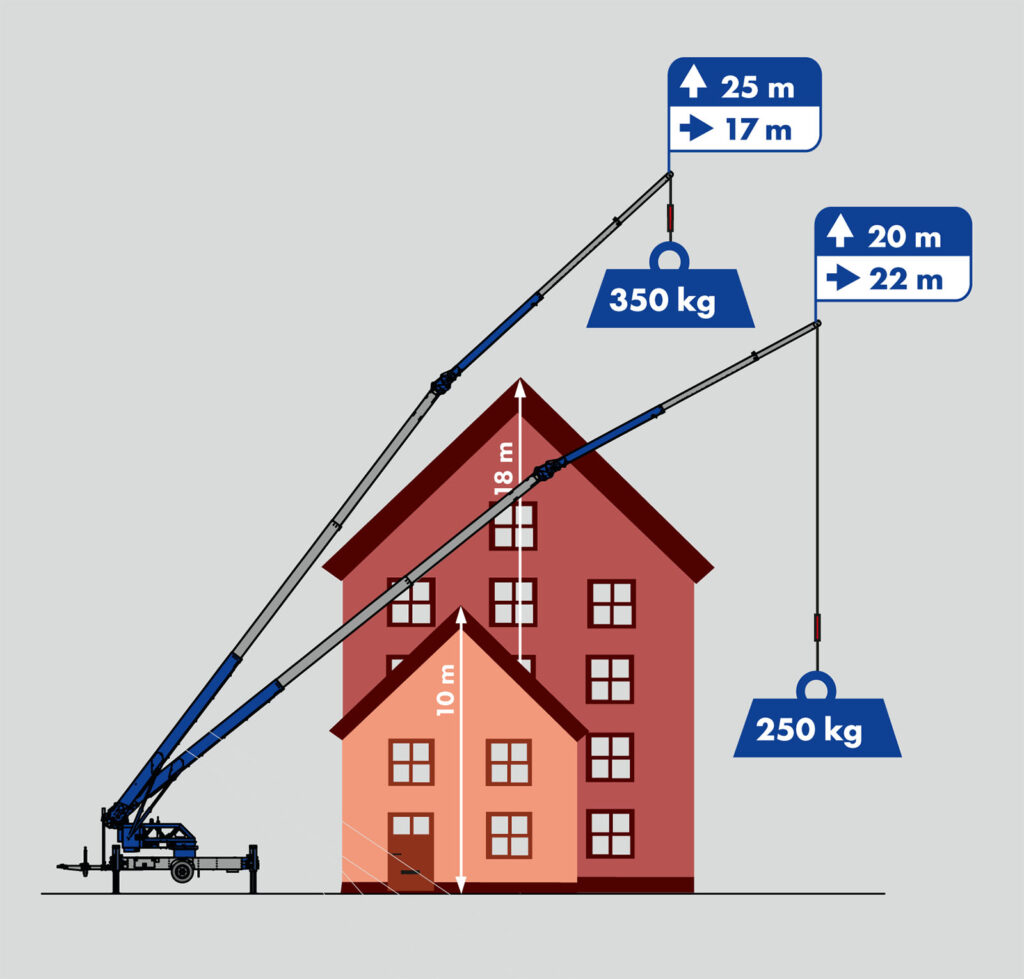

Working area
Crane operation
Platform operation
