Klaas
K950 LHX
Aluminium Mobile Crane
Capacity: 3,000kg / 5,000kg
Max. hook height: 43.5m
Max. extension length: 45.76m
Machine weight: 16.000kg
Product overview
The K950 LHX combines a professional and large loading area with the enormous range of our powerful K950. And is therefore an ideal combination machine for building materials logistics specialists as well as for many trades around roofs and facades.
The maximum payload of the all-rounder is almost six tonnes – a value that is unique on the market for a 26-tonne truck on three axles in combination with its crane performance. The newly designed superstructure creates space for eight Euro pallets despite the compact chassis. Since its swing-through radius lies within the mirror contour, the city truck crane can also be used where space is limited.
Specifications
- Hook load (stand./opt.) – 3.0 / 5.0t
- Hook height – 43.5m
- Total weight – ≥ 16t
- Extension length – 45.76m
- Outrigger width (min.) – 3.04m
- Outrigger width (max.) – 5.93m
- Winch pulling force – 3,000kg
- Boom (3,000kg) (1,500kg) – 5.50m – 12.05m
- Extension 3 (350kg) – 13.78m
Working area
Crane operation

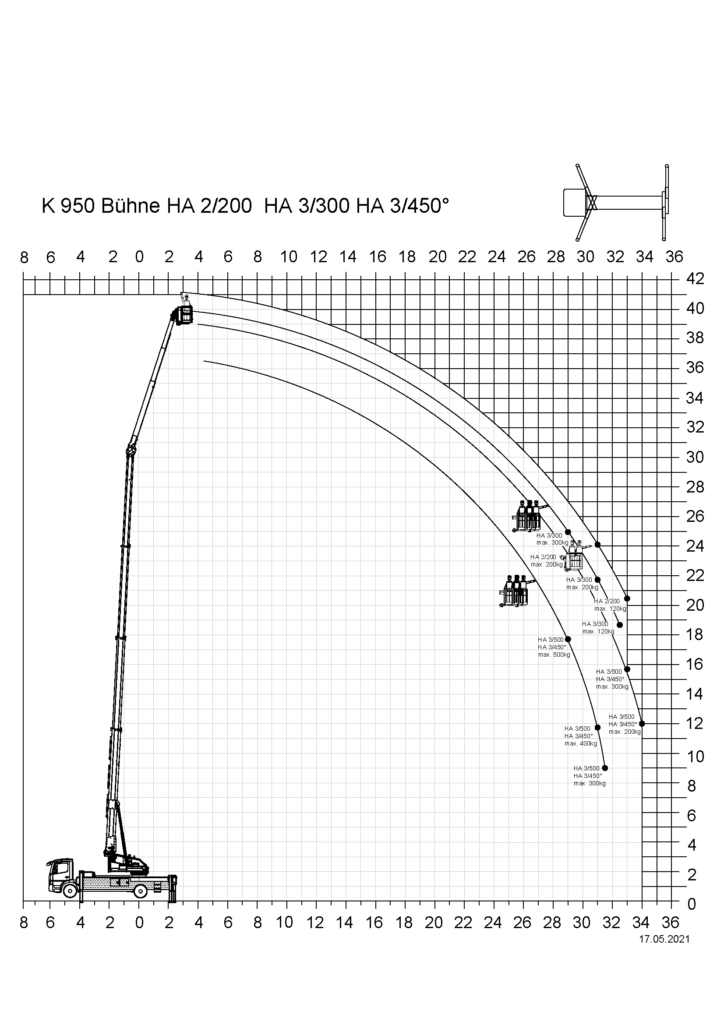

Platform operation (HA 2/200)
Gallery
The German manufacturer Klaas has been a leader in innovative lifting solutions since introducing the first aluminum crane in 1993. With over 5,000 mobile and trailer cranes sold worldwide, they’ve earned the top spot in the industry. Known for their commitment to quality, Klaas produces most components in-house and is ISO 9001 certified, ensuring reliability and customer-focused solutions. From mobile cranes to rescue vehicles, Klaas offers high-performance, lightweight products tailored to diverse needs. Click here for more information.
