MAEDA
CC1485S-2
Mini Crane
Capacity: 6.0t x 2.6m
Max lifting height: 16.70m
Max working radius: 16.10m x 0.43t
Machine weight: 14,560kg
Product overview
The updated CC1485 model boasts many market-leading features including a massive 6 ton lifting capacity, 16.3m boom, rear view camera and 7” monitor as standard. No outriggers mean an extremely slim working footprint. In addition this environmentally-friendly machine is equipped with an EU Stage V compliant engine making it more fuel efficient. The fly Jib attachment sees a move towards a more traditional wrap-around system which is much more user-friendly and easier to operate. Blade is now available as an option.
- 6.0 Ton Max Capacity
- 16.7m Max Working Height
- 22.0m with Optional Fly Jib
- 2000kg Pick & Carry Duty
- Minimal Tail Swing
- Fully Enclosed Air-Conditioned Cab with Link Slide Door
- 7″ Multi Monitor
- Powerful Two Speed Winch with Hydraulic Disc Brake

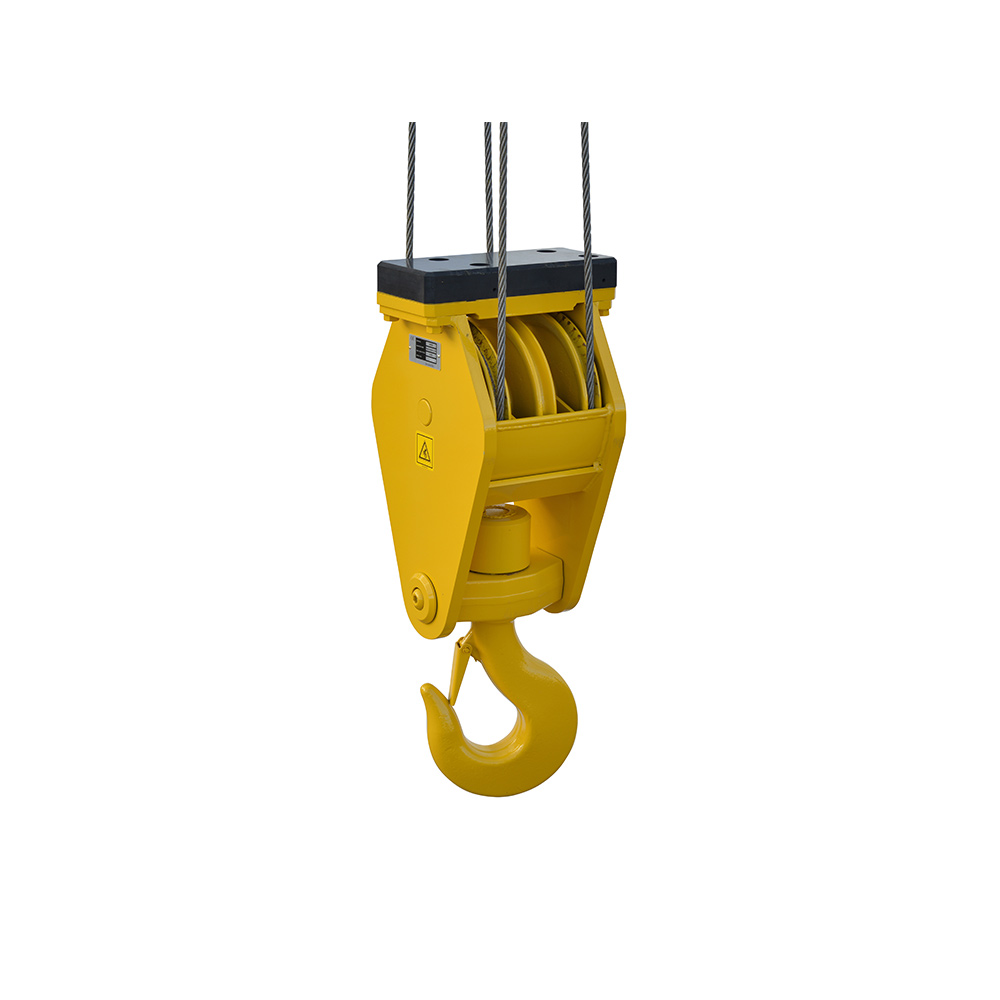

- 4 fall/2 fall Hook Block
- Tilt Sensor/Alarm
- Automatic Heptagonal5-Section Boom
- Data Logger
Specifications
- Crane Capacity – 6.0t x 2.6m
- Max. Working Radius – 16.1m
- Max. Lifting Height – 16.7m (22.0m with fly jib)
- Max. Reach Below Ground – -24.5m (4 falls), -103,5m (1 fall)
- Pick & Carry Capacity – 2,000kg
- Travel Speed – 0-3.1km/h
- Travel Ground Pressure – 51.2kpa [0.52kgf/cm2]
- Travel Ground Pressure (with blade & fly jib) – 54.5kpa [0.56kgf/cm2]
- Engine – ISUZU 4LE2XBJB / Diesel
- Engine Rated Output – 44.6kW/2,000rpm
- Dimensions – 6,560mm (L) x 2,490mm (W) x 2,865mm (H)
- Tail Swing – 1,550mm
- Machine Weight – 14,560kg (15,540kg with blade and fly jib)
Working range chart
Dimensions
Coming soon.
