MAEDA
CC1908S-1
Mini Crane
Capacity: 8.1t x 2.8m
Max lifting height: 20.1m
Max working radius: 19.23m
Machine weight: 19,400kg
Product overview
The CC1908 model boasts many market-leading qualities including a massive 8.1 ton lifting capacity, a 20.1m lifting height and 3.5 ton pick and carry capacity. Features of this model include a touchscreen 10.4″ monitor display, boom slew limit setting, 360° surround-view camera and monitor, wide view roof window and a sun shade and visor as standard. No outriggers mean an extremely slim working footprint and this model has a class-leading short tail swing and slew radius for work in restricted areas.
In addition this environmentally-friendly machine is equipped with a Yanmar Diesel engine that is EU Stage V and EPA Final Tier 4 compliant making it more fuel efficient. Other highlights of this crane include a fully enclosed air-conditioned cab with link slide door, powerful two speed hi/lo winch, hydrostatic transmission, 6/4/2 fall hook block, tilt sensor/alarm, anti slack device and automatic heptagonal 5-section boom. Optional features are a 1.5 ton Hydraulic Fly Jib, a new 2 ton Searcher Hook and Blade.
- 8.1 ton Max Capacity
- 20.1m Max Working Height (26m with Optional Fly Jib Attachment)
- 3500kg Pick & Carry Duty
- 10.4 inch Multi Monitor
- Powerful Two Speed Winch with Hydraulic Disc Brake
- 360 degrees slew angle
- Slew Restriction Device
- Hydrostatic Transmission
- 6 Fall / 4 Fall / 2 Fall Hook Block
- Tilt Sensor/Alarm
- 360° Surround-View Camera
- Automatic Pentagonal 5-Section Boom
- Data Logger
Specifications
- Crane Capacity – 8.1t x 2.8m
- Max. Working Radius – 19.23m
- Max. Lifting Height – 20.1m (26.0m with fly jib)
- Max. Reach Below Ground – -148.8m (1 fall)
- Pick & Carry Capacity – 3,500kg
- Travel Ground Pressure – 0.67kgf/cm2
- Travel Ground Pressure (with fly jib) – 0.69kgf/cm2
- Gradability – 20 degrees
- Boom hoist angle – 0 to 80 degrees
- Engine – Yanmar 4TNV98CT-L2VMB / Diesel
- Engine Rated Output – 52.3kw/2,100rpm
- Emission level – EU Stage V
- Fuel tank capacity – 150.0 litres
- Dimensions – 7,380mm (L) x 2,490mm (W) x 3,015mm (H)
- Machine Weight – 19,400kg (19,900kg with fly jib)
- Machine Weight with blade – 20,350kg (20,850kg with fly jib)

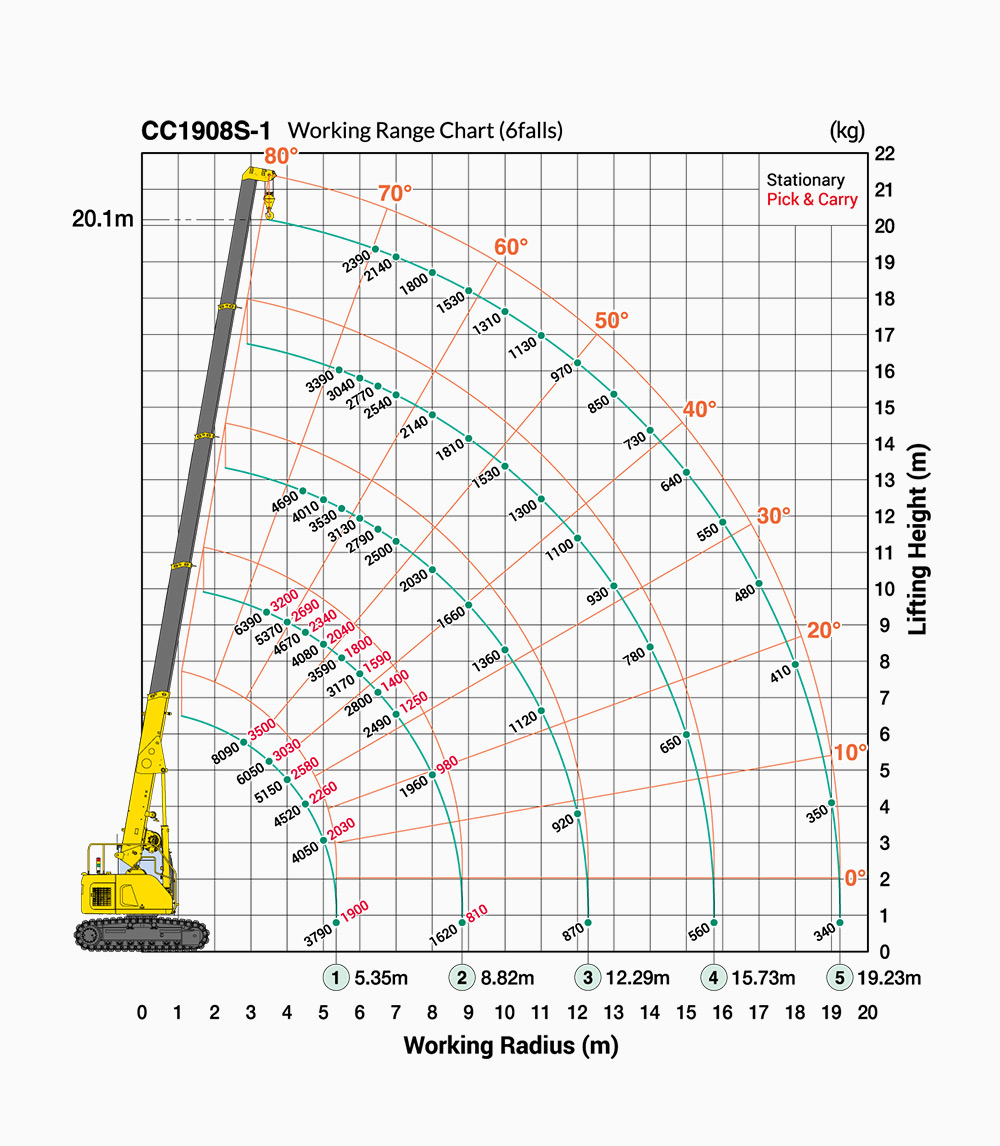

Working range chart
Dimensions
Coming soon.
Coming soon.
