MAEDA
CC423S-1
Mini Crane
Capacity: 2.93t x 1.5m
Max lifting height: 9.46m
Max working radius: 8.38m x 0.20t
Machine weight: 4,400kg
Product overview
The CC423 is the newest addition to the Crawler Crane range with a 2.93t capacity. The CC423 has primarily been developed for use in areas such as city centres where space is restricted, due to the highly compact tracked footprint with no need for outriggers and near zero-tailswing. The major feature of this crane is the 1465kg Pick & Carry capacity. Other features include a new engine equivalent to EPA Tier 4 standard, an open but covered superstructure mounted operator’s cab and a gross weight of 4400kg.
- 2.93 Ton Max Capacity
- 9.46m Max Working Height
- 1465kg Pick and Carry Duty
- Blade
- Programmable Moment Limiter
- 4 Fall / 2 Fall Hook Block
- Tilt Alarm
- Powerful Winch with Hydraulic Disc Brake
- Minimal Tail Swing
- Optional 850kg Searcher Hook
- Data Logger
- Pilot Pressure Travel Control
- Equivalent to EPA Tier 4 Engine
- New 7 inch Multi Monitor
Specifications
- Crane Capacity – 2.93t x 1.5m
- Max. Working Radius – 8.38m x 0.20t
- Max. Lifting Height – 9.46m
- Max. Reach Below Ground – -15.5m (4 falls)
- Pick & Carry Capacity – 1,465kg
- Travel Speed – 0-4.6km/h
- Travel Ground Pressure – 43.5kpa [0.44kgf/cm2]
- Engine – YANMAR 3TNV88F-EPMBA / Diesel
- Engine Rated Output – 17.5kw/2,400rpm
- Dimensions – 4,020mm (L) x 1,740mm (W) x 2,495mm (H)
- Tail Swing – 980mm
- Machine Weight – 4,400kg (Rubber Pads : +90kg)

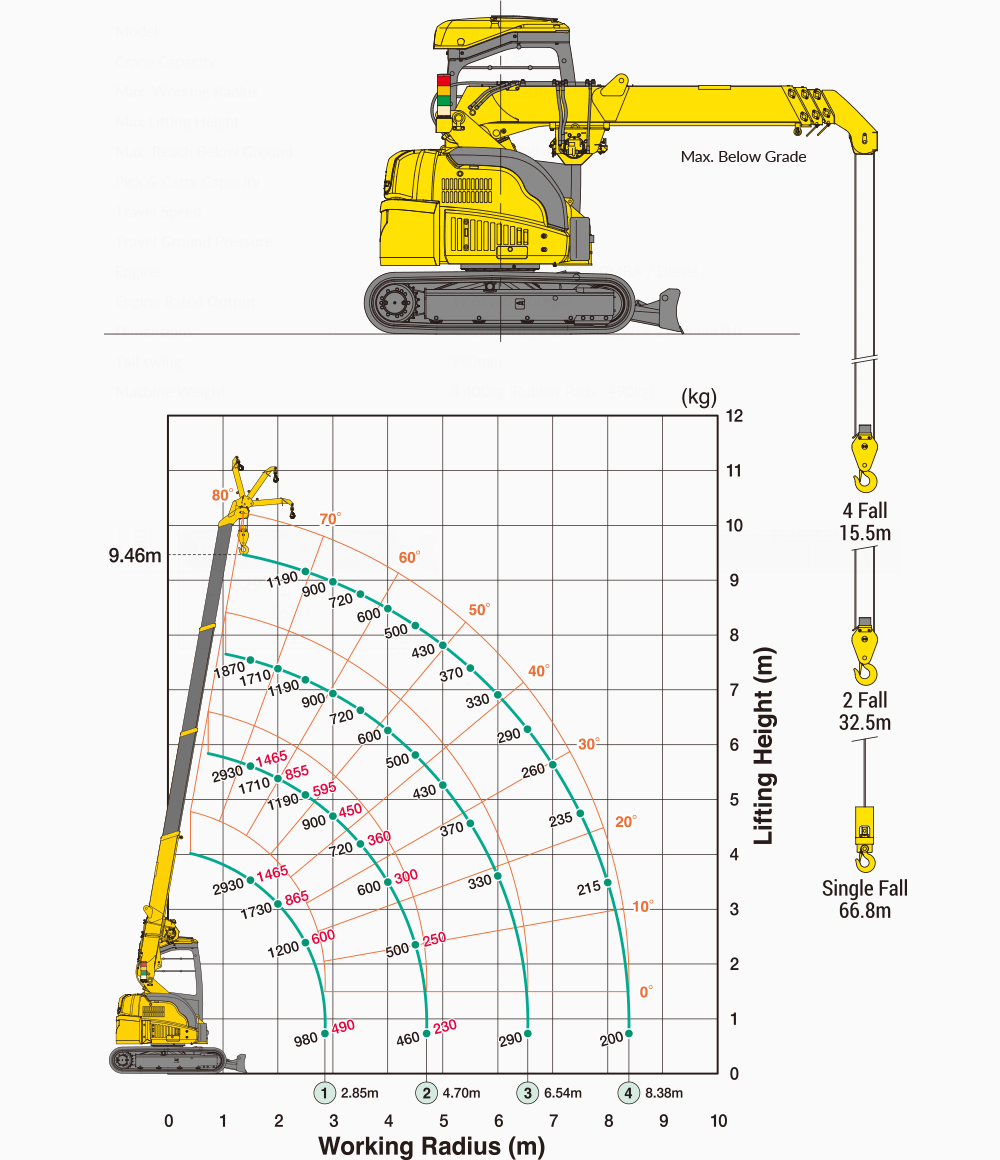

Working range chart
Dimensions
Downloads
