MAEDA
MC405C-3
Mini Crane
Capacity: 3.83t x 2.7m
Max lifting height: 16.8m
Max working radius: 16.0m x 0.21t
Machine weight: 5,600kg

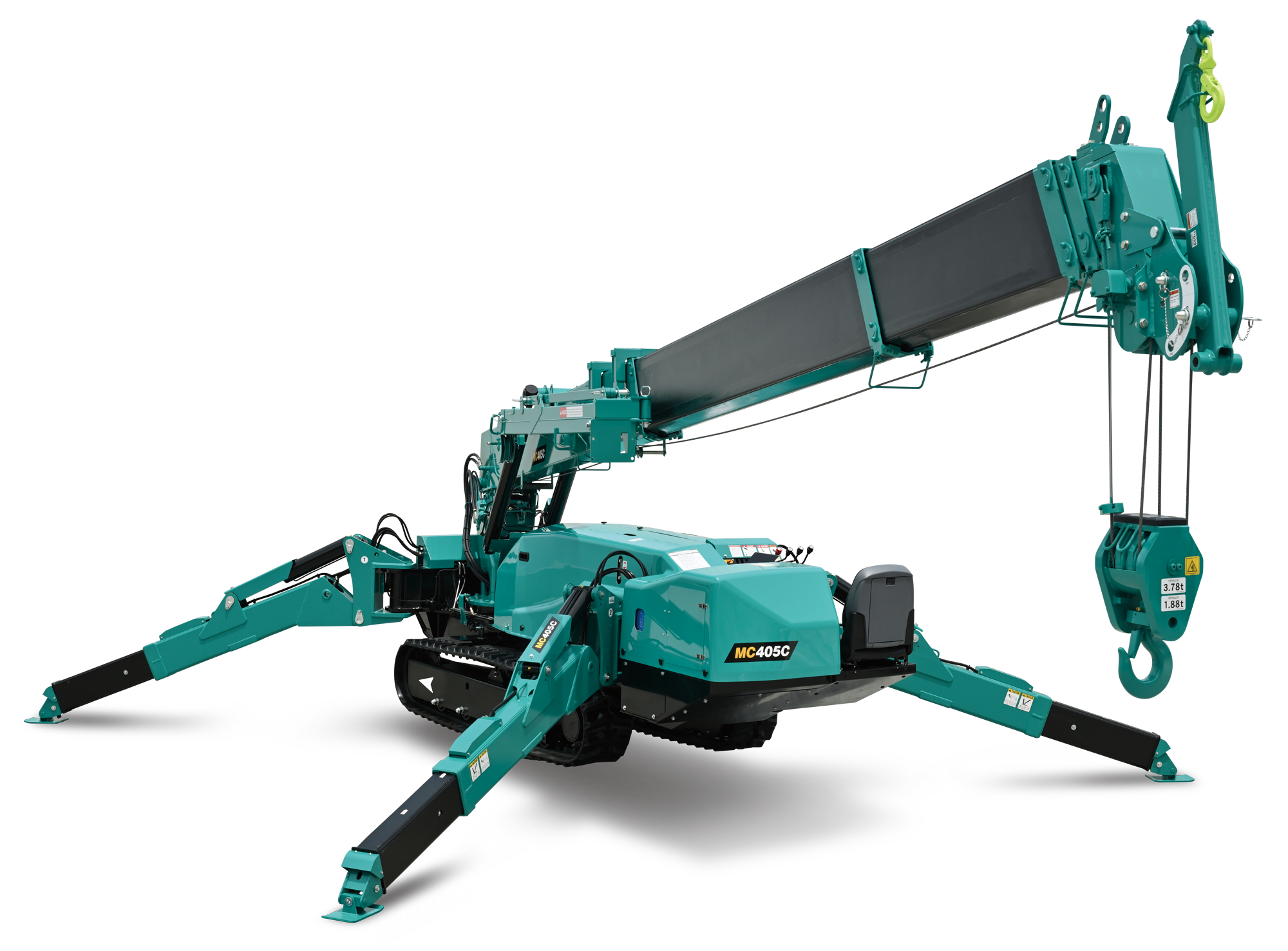

Product overview
The MC405-3 is a very powerful Mini Crane with an outstanding 3.83 tons lifting capacity. This versatile model has a unique Pick and Carry feature of up to 500kg. The optional fly jib increases the already impressive working range even further. It also features an option of a class-leading Searcher Hook with 1500kg capacity. The Yanmar diesel engine meets requirements for the new gas emission standards of EU Stage V which is valid from 2019. The superior quality and engineering of the Maeda product line give longevity of use and a higher return on rental investments are enjoyed by end-users across the board.
- 3.83t Max Capacity
- 16.8m Max Lifting Height
- 500kg Pick & Carry Duty
- EU Stage V Compliant Engine
- Working Limit Settings
- Data Logger
- Tilt Alarm
- Digital Feedback Remote Control
- Centralized Controls
Energy Saving System - Sheaves Protected Inside Boom
- Variable (Hi/Lo) Travel Speeds
- Crane/Outrigger Interlock System
- Programmable Moment Limiter
- Powerful Two Speed Winch with Hydraulic Disc Brake
- 4/2 Fall Hook Block
- Optional Electric Motor
- Optional Single Fall Hook
- Optional 850kg / 1500kg Searcher Hook
Specifications
- Crane Capacity – 3.83t x 2.7m
- Max. Working Radius – 16m x 0.21t
- Max. Lifting Height – 16.8m (20.7m with fly jib)
- Max. Reach Below Ground – -20.5m (4 falls)
- Outrigger Max. Extended Width – (Lateral) 5,786mm x (Front) 5,118mm x (Rear) 5,520mm
- Pick & Carry Capacity – 500kg
- Travel Speed – 0-2.9km/h
- Travel Ground Pressure (MC405CRM) – 49.0kpa [0.50kgf/cm2]
- Travel Ground Pressure (MC405CRME) – 51.0kpa [0.52kgf/cm2]
- Engine – YANMAR 3TNV88-EPMB / Diesel
- Engine Rated Output – 17,5kw/2,400rpm
- Electric Motor – 7.5kw, 3-phase 380V
- Dimensions – 4,980mm (L) x 1,380mm (W) x 1,980mm (H)
- Machine Weight – 5,600kg (5,750kg with electric motor) (Fly jib: +150kg)

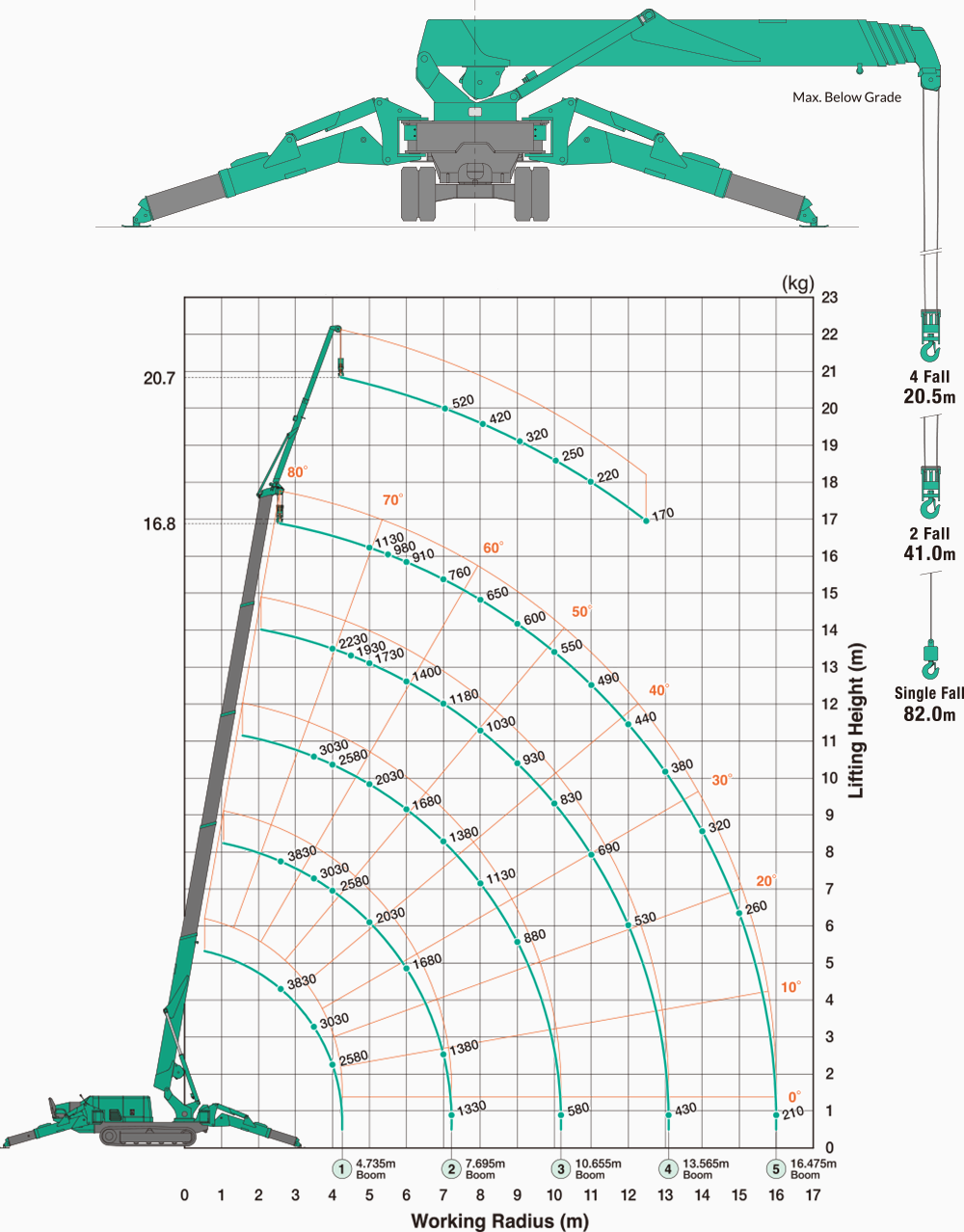

Working range chart

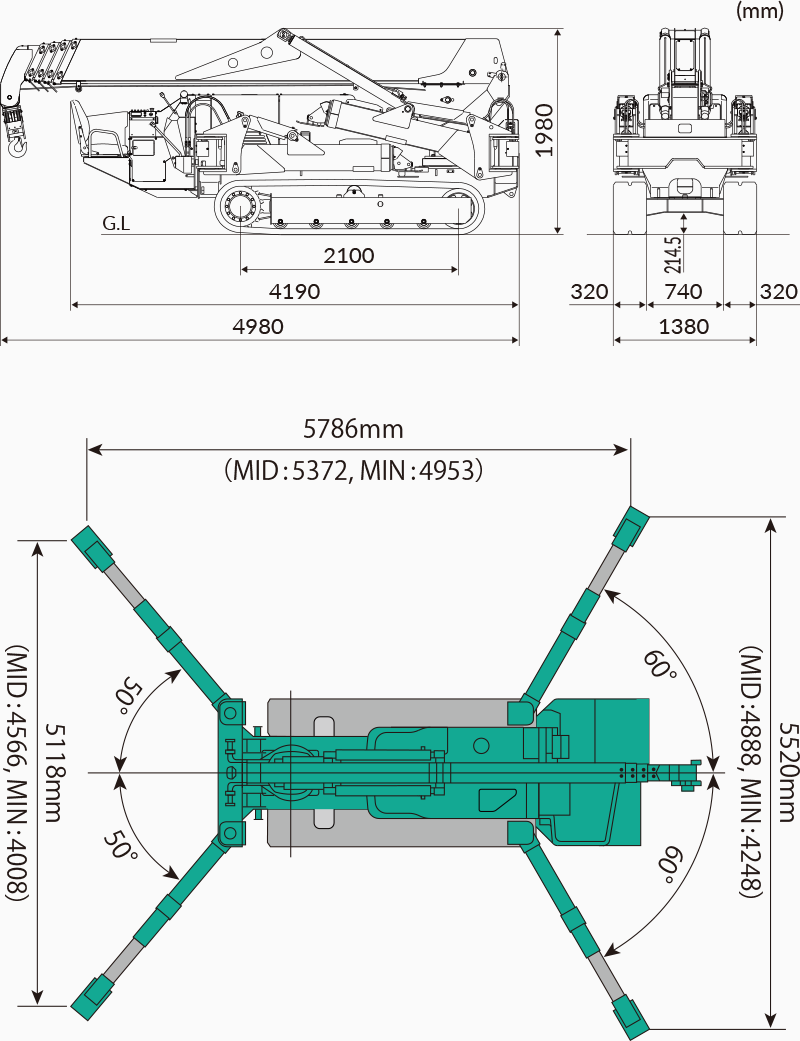

Dimensions
Downloads
