MAEDA

MK1033CW-1

Mini Crane

^

Capacity: 995kg x 1,3m

^

Max lifting height: 11,3m

^

Max working radius: 9,9m x 180kg

^

Machine weight: 2.270-2.390 kg

Product overview

The new MK1033 is unique in the range being a knuckleboom crane. It is a narrow aisle, operator-controlled crane with the advantage of a hydraulic 6-section luffing boom and jib. This gives the crane a serious “up and over” capacity, making it easier to perform many tasks such as glass handling and installation, lifting in narrow spaces and placing Dormers and Velux units on rooftops. The MK1033  is still narrow enough to fit through a standard doorway yet boasts a lifting capacity of 0.995t and a lifting height of 11.3m.

  • 995 kg Max Capacity
  • 11,3 m Max Working Height
  • Super Slim Body Widht (750mm)
  • HBC Radio Remote Control
  • Outrigger Interlock System
  • Low Ground Preassure
  • Manoeuverablity & Stability
  • New display and Moment limiter
  • Multi Outrigger Positions
  • Optional Self-detachable Electric motor
  • Tilt alarm
  • Radio Remote Control system
  • Optional 820 kg Winch with Hydraulic Disc Brake
  • Data Logger

Specifications

  • Crane Capacity –995kg x 1,3m
  • Max. Working Radius – 9,9 m x 180 kg
  • Max. Lifting Height – 11,3 m
  • Outrigger Max. Extended Width – (Lateral) 4.580mm x (Front) 4.530mm x (Rear) 3.810mm
  • Travel Speed – 0-2,0km/h
  • Travel Ground Pressure (MK1033CW-1) – 57,6 kpa [0.59kgf/cm2]
  • Travel Ground Pressure (MK1033CWEH-1) – 59,6 kpa [0.61kgf/cm2]
  • Engine – YANMAR 2TNV70-NMBA / Diesel
  • Rated output – 7,4kw/2.500 rpm
  • Dimensions (MK1033CW-1) – 2.900 mm x 750 mm x 1.955 mm
  • Dimensions (MK1033CWH-1) – 3.030 mm x 750 mm x 1.990 (1.955) mm *
  • Dimensions (MK1033CWE-1) – 3.235 mm  x 750 mm  x 1.955 mm
  • Dimensions (MK1033CWEH-1) – 3.235 mm  x 750 mm  x 1.990 (1.955) mm *
  • Weight (MK1033CW-1) – 2.290 kg (2.000 kg) *
  • Weight (MK1033CWH-1) – 2.390 kg
  • Weight (MK1033CWE-1) – 2.270 kg
  • Weight (MK1033CWEH-1) – 2.370 kg

(* Some components need to be removed)

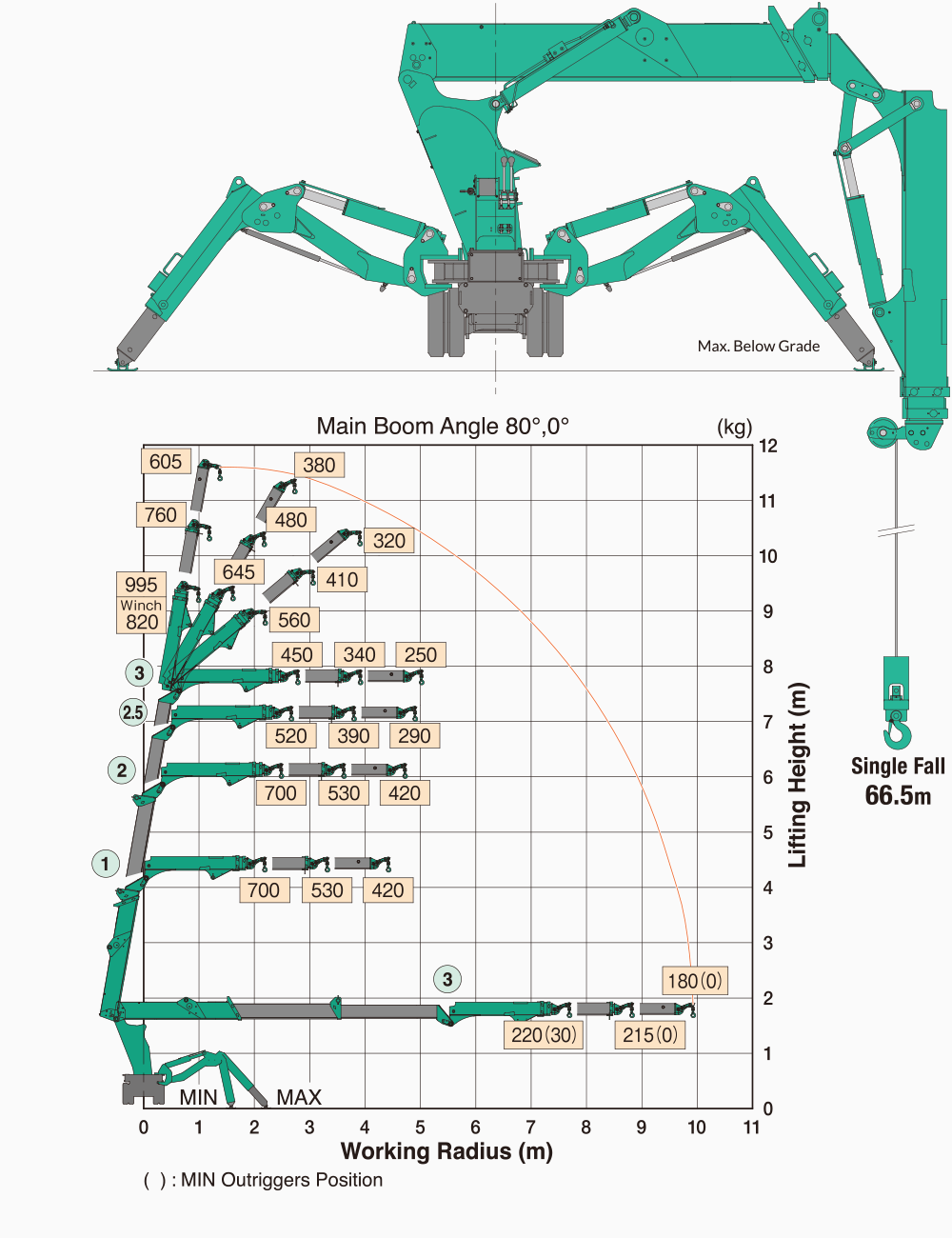

Working range chart

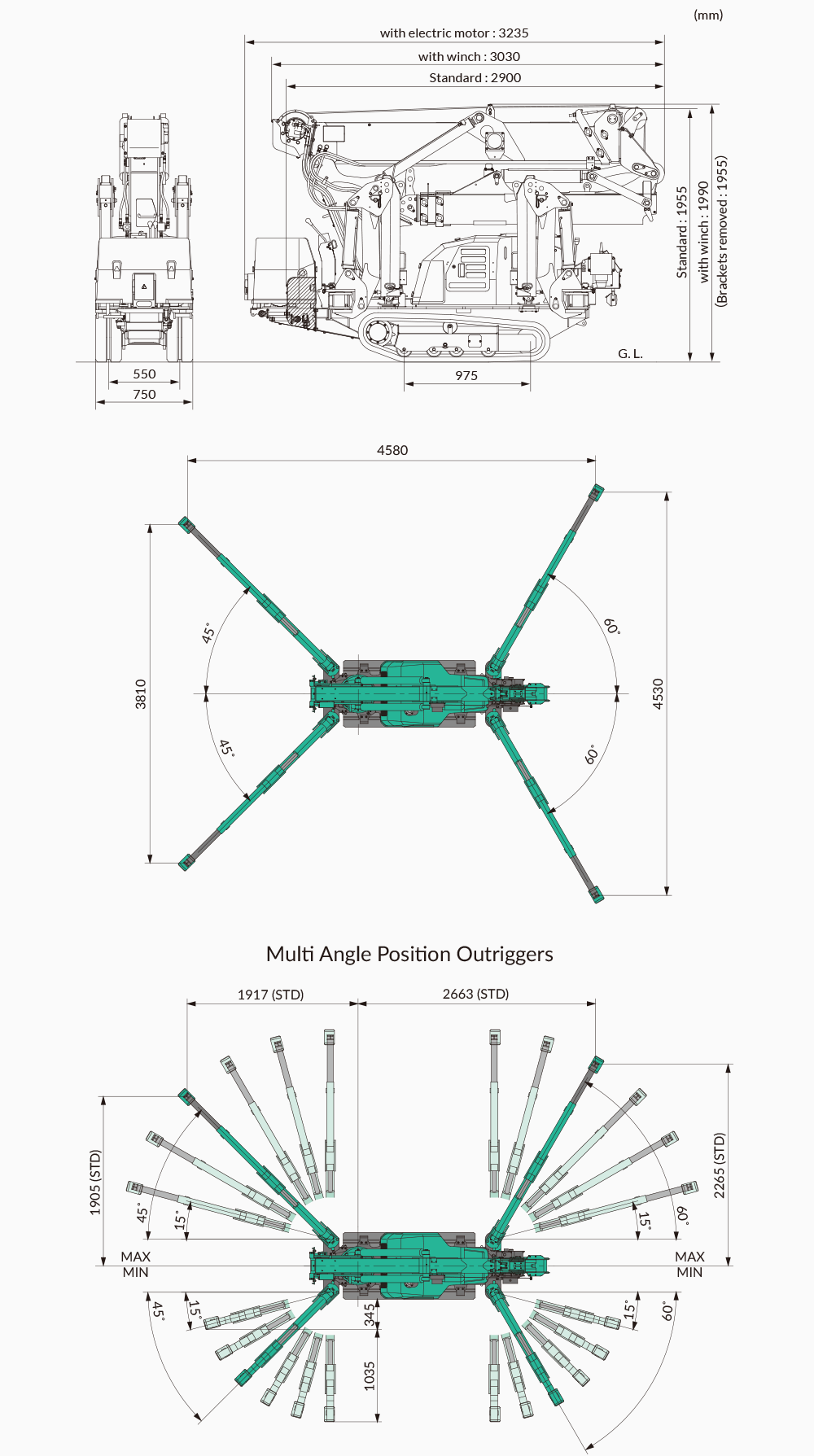

Dimensions

Are you interested in this product?

Examples of work

Construction

The popular Maeda cranes are used at various construction sites around the globe. In both public and private sectors, these machines are proven advantageous with their impeccable accessibility, flexibility and high capacity. Let us introduce you to a smarter way of lifting.

Glass Handling

With our innovative range, glazing works have become easier, safer and more efficient than ever. As always when handling glass, precision is as crucial as safety. Our products enable first-class glass handling. Feel free to contact us for more information.

Industrial

For industrial applications, the Maeda mini cranes can be found everywhere. From maintenance of equipment and line replacements to material lifting and installations works. Their advantages of high reliability and durability outshine the competitors.

Agriculture

The sector of agriculture is growing each year and we have seen the use of mini cranes increasing. Mostly for stonework and maintenance but also for inspections and installations. Our products are appreciated for their ability to access extremely narrow passageways and keeping the damage to its surroundings to a minimal. Further they can easily work on the most uneven grounds and terrains.

Mining & drilling

Mining and drilling operations often have a high level of requirements with many specific needs that Maeda’s products are able to meet. The environments are demanding and the difference between the wrong and right equipment can be vital for the success of the operations. The majority of our mini cranes can easily be transported to remote locations and survive the harshest conditions.

Panel & roofing

Our smaller cranes can be transported to the upper floors of high rise buildings by the service elevators and then be used for installation works of outer walls such as panels and glass frames. This popular application for mini cranes creates shorter construction periods and cuts costs by avoiding the use of expensive tower cranes. Further we provide specific products for panel handling. A large number of our machines can be used to lift material for roof constructing as well as different kind of installations.

Aviation & Maritime

Many mini cranes in our range are used for maintenance and component replacement of airplanes, helicopters, oil rigs and vessels. Both outside in the field and inside facilities. Further we have many examples where our cranes have been transported by aircraft, helicopter, barge and boat to remote locations for maintenance work. We also see an increase in the use of our machines at shipyards and marine constructions.

Special projects

With more innovative solutions and techniques appearing all the time, our range of machines has found many interesting ways of use. From large-scale 3D modeling applications to special solutions in drilling and concrete work.
