MAEDA
MK3053C/CE
Mini Crane
Capacity: 2,98 t x 1,8 m
Max lifting height: 16,95 m
Max working radius: 14,3 m
Machine weight: C 2.880 kg, CE 2.900 kg
Product overview
Introducing the latest knuckleboom crane from Maeda. The MK3053C/CE is the diesel/diesel electric version which is equipped with a strong and reliable diesel engine and electric motor (MK3053CE). It is a fully proportional, radio remote controlled crane with a fully automatic 5-section pentagonal telescopic boom. It also has a fully automatic 3-section pentagonal telescopic negative angle jib.
Automatic and step-less multi outrigger settings, as well as variable crawler gauge makes this crane stand out from any other comparable crane in this segment.
The MK3053C/CE is still narrow enough to fit through a standard doorway yet boasts a lifting capacity of 2,98 t and a lifting height of 16,95 m.
- Main boom 2.98 t max capacity
- Jib 1,0 t max capacity
- 16.95 m max lifting height
- Automatic & stepless multi outrigger positions
- 7” display
- Negative angle jib (detachable)
- Fully proportional wireless radio remote control
- Working limit settings
- Programmable moment limiter
- Data logger & tilt alarm
- Winch, integrated in boom post
- 4-fall hook block
Specifications
- Crane Capacity main boom 2,98 t x 1,8 m
- Max capacity Jib 1,0 t
- Max. Working Radius –14,3 m
- Max. Lifting Height – 16,95 m
- Outrigger Max. Extended Width – (Lateral) 4.460 mm x (Front) 4.560 mm x (Rear) 4.500 mm
- Travel Speed – 0-2,4km/h
- Travel Ground Pressure – 0.85kgf/cm2
- Engine (MK3053C/CE) – KUBOTA Z482-E4B / Diesel
- Engine (MK3053CE) – Totally enlcosed electric fan-cooled motor 4.0kw, 4P 380V
- Dimensions – (Length) 3.195 mm – (Width) 780 mm (Height) 1.945 mm
- Weight MK3053C – 2.880, MK3053CE – 2.900

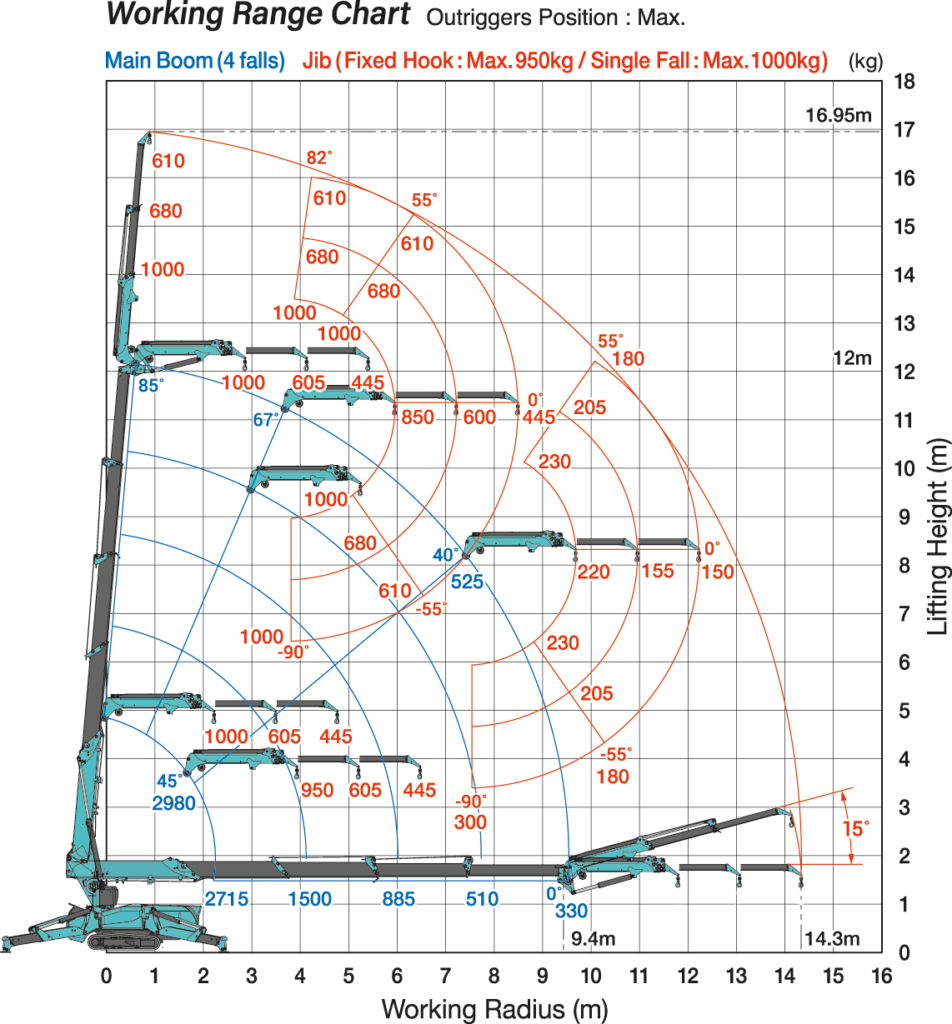

Working range chart
Outriggers position

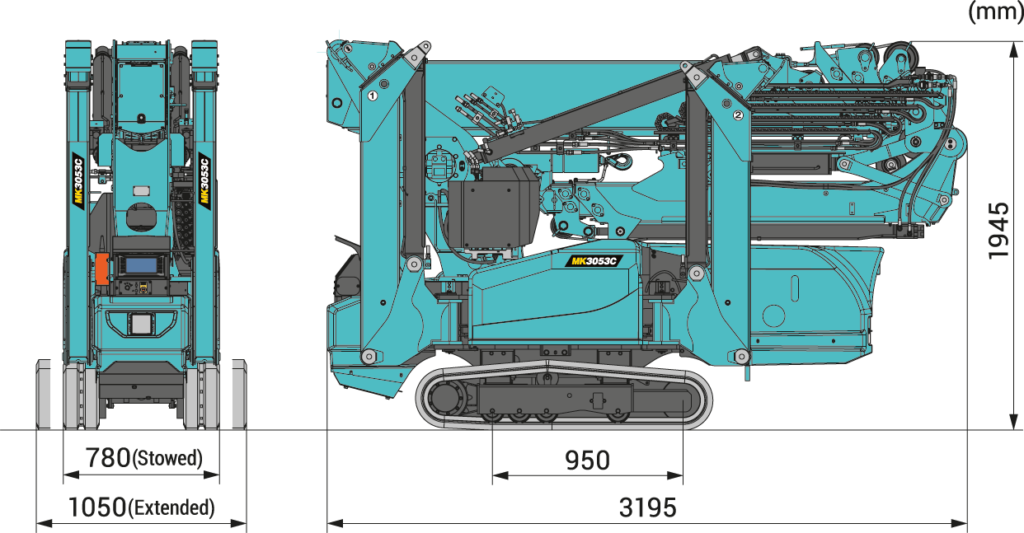

Dimensions
More info will appear here
Downloads
