MAEDA

MK3053CB

Mini Crane

^

Capacity: 2,98 t x 1,8 m

^

Max lifting height: 16,95 m

^

Max working radius: 14,3 m

^

Machine weight: 2.900 kg

Product overview

The new MK3053 is the latest knuckleboom crane from Maeda. It is a narrow aisle, fully proportional radio remote-controlled crane with a fully automatic 5-section pentagonal telescopic boom. It also has a fully automatic 3-section pentagonal telescopic jib. Automatic and stepless multi outrigger settings, as well as variable crawler gauge makes this crane stand out from the rest of the Maeda range.  The MK3053  is still narrow enough to fit through a standard doorway yet boasts a lifting capacity of 2,98t and a lifting height of 16,95m.

  • 2.98 t max capacity
  • 16.95 m max lifting height
  • Lithium-ion Titanate battery
  • Minimal charging time
  • Continuous operation while charging
  • White rubber tracks as standard
  • Automatic & stepless multi outrigger positions
  • 7” display
  • Negative angle jib (detachable)
  • Fully proportional wireless radio remote control
  • Working limit settings
  • Programmable moment limiter
  • Data logger & tilt alarm
  • Winch, integrated in boom post
  • 4-fall hook block
  • Optional add-on battery pack

Specifications

  • Crane Capacity –2,98 t x 1,8 m
  • Max. Working Radius –14,3 m
  • Max. Lifting Height – 16,95 m
  • Outrigger Max. Extended Width – (Lateral) 4.546mm x (Front) 4.537mm x (Rear) 4.315mm
  • Travel Speed – 0-2,4km/h
  • Travel Ground Pressure – 83,4 kpa [0.85kgf/cm2]
  • Engine (MK3053CW/CWE) – KUBOTA Z482-E4B / Diesel
  • Engine (MK3053CWE) – Totally enlcosed fan-cooled motor 4.0kw, 4P 380V (200-415V)
  • Battery system (MK3053CB) – Lithium Titanate Battery
  • Single phase AC200V/16A, AC100V/14A
  • Operating time – up to a full working day if charged during operation
  • Dimensions – (Length) 3.195mm – (Width) 780mm (Height) 1.945mm
  • Weight (MK3053CWE) – 2.900

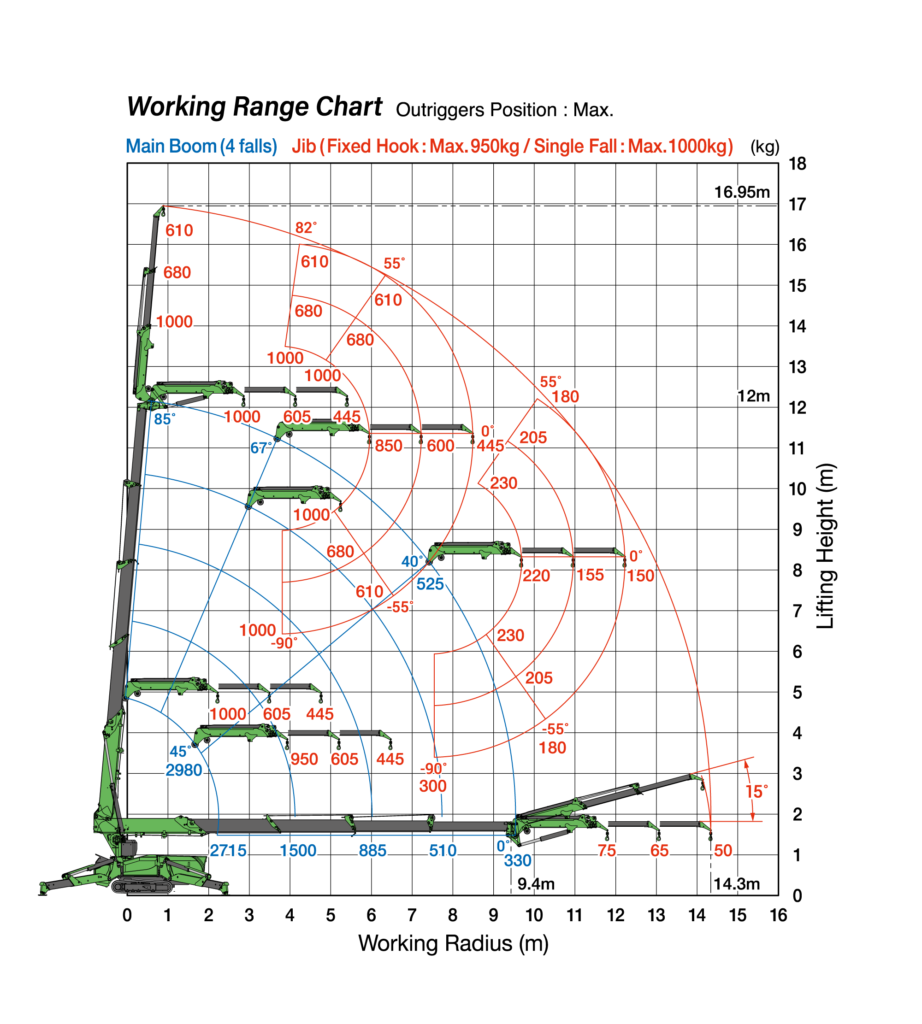

Working range chart

Dimensions
