SmartGroup

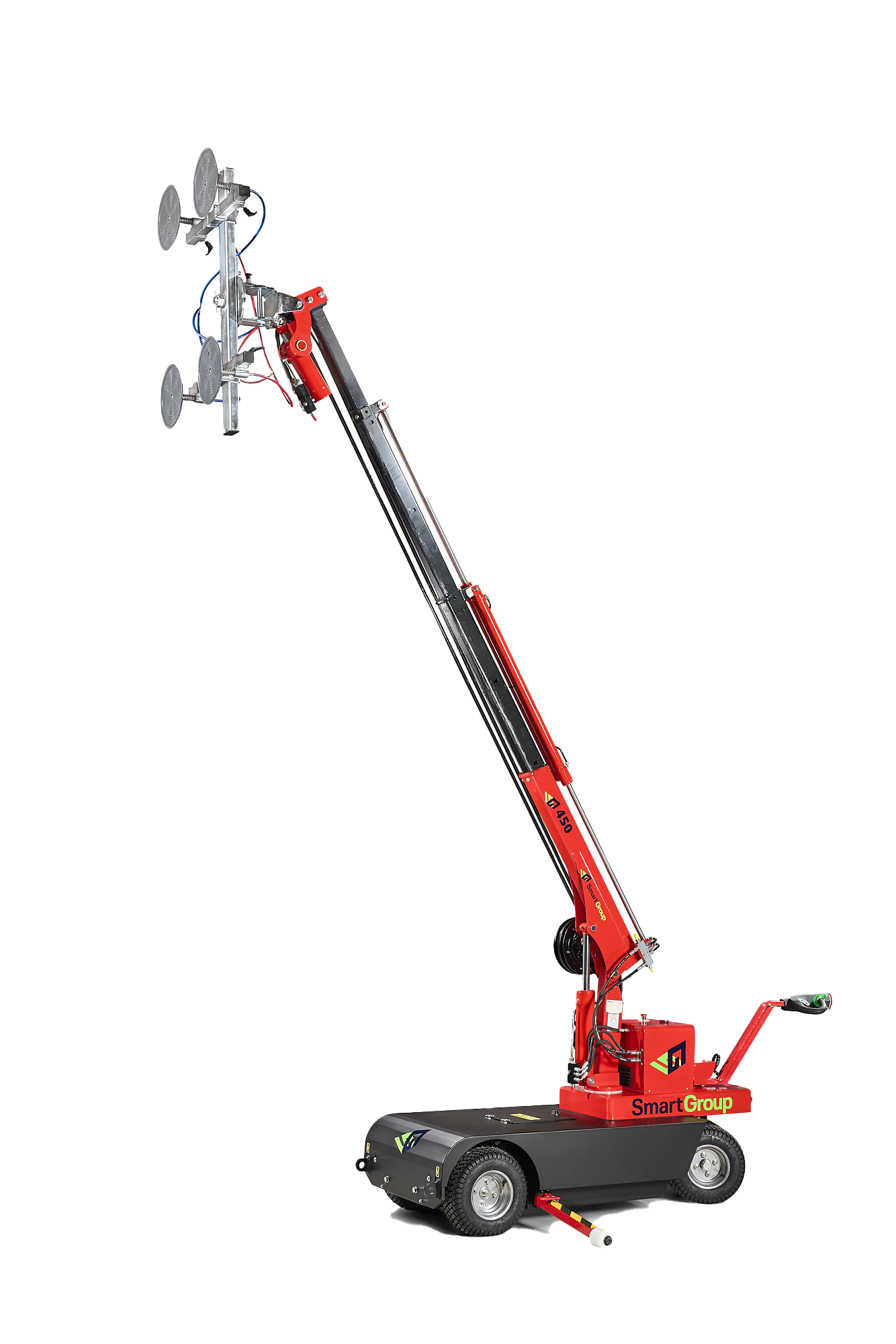

SG450
glass lifter
Working height: 5,8 m
Up to: 450 kg
Product overview
The SG450 glass lifter was developed to meet the demands of the glass industry, window and panel manufacturing, and in all situations where high performance, cutting-edge technology, and proven safety are crucial.
Lifting Capacity
The SG450 glass lifter boasts an impressive lifting capacity of up to 450 kg in pick and carry mode, making it ideal for handling heavy materials in the glass industry and related fields.
Safety
The SG450 is approved for both indoor and outdoor use and meets the required safety standards according to CE certification.
Working Height
With an impressive working height of up to 5.8 m, the SG450 is suitable for work in the glass industry, window installation, and panel assembly where a high working height is essential for efficient operation.
Hydraulics
Equipped with powerful hydraulic systems that allow for precise control of the lifting arm.
- Drive: 2WD front-wheel drive
- Max. height: approx. 5.8 m
- Max. lateral reach: 3.5 m
- Max. payload (pick & carry): 450 kg
- Weight: 1,050 kg
- Speed: 5 km/h
- Dimensions: 2.07 × 0.81 × 1.52 m
SmartGroup
Danish Smart Group strives to reduce the number of workplace accidents to zero through advanced and safe lifting solutions. Using intelligent technology, they ensure that every lifting operation is carried out as safely and efficiently as possible. Click here for more information.
Benefits
- High-performance hydraulic glass robot with electric drive
- Load capacity up to 450 kg (pick & carry)
- Reach: 5.8 m height; 3.5 m in front of the wheels
- Industry-leading safety standards
- Proportional control with potentiometer
- Load monitoring via load cells
- Automatic speed reduction when load limit is reached
- LED weight display
- Arm with 3 hydraulic telescopic segments
- Radio remote control (optional)
- Easy operation with swivel/steering arm
- Powerful electric motor with front-wheel drive
- Low center of gravity for increased stability
- Special tires for difficult terrain
- Approved for indoor and outdoor use
- CE certified

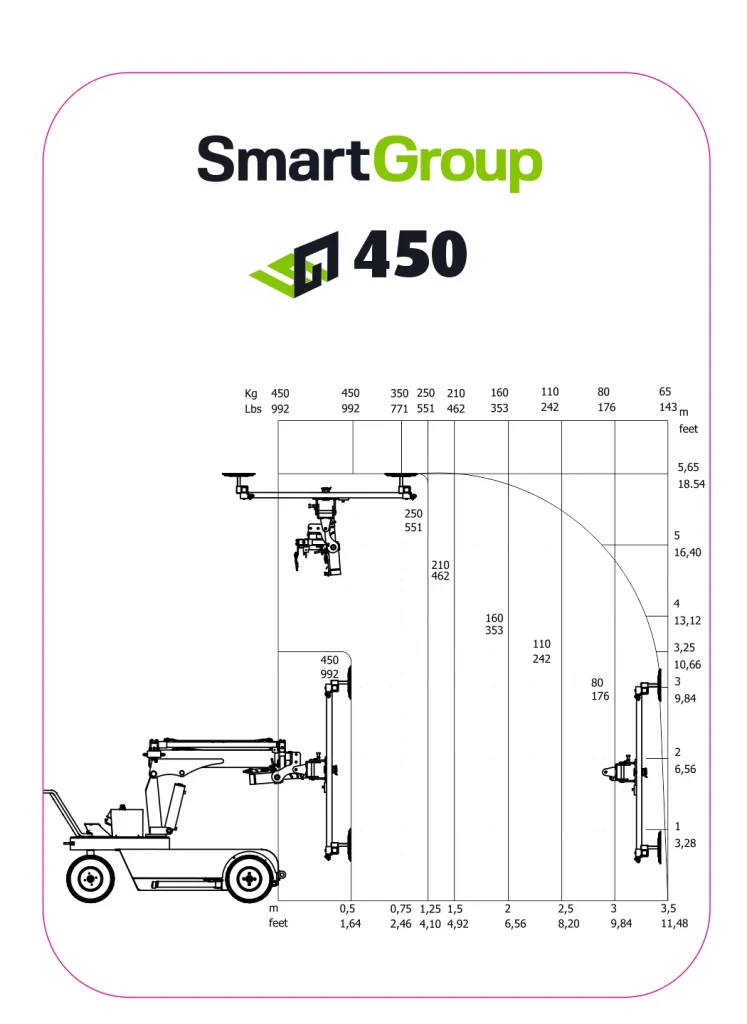

Load digram
