SmartGroup
SG650
Glass lifter
Working height 5.8 m
Up to 650 kg
Product overview

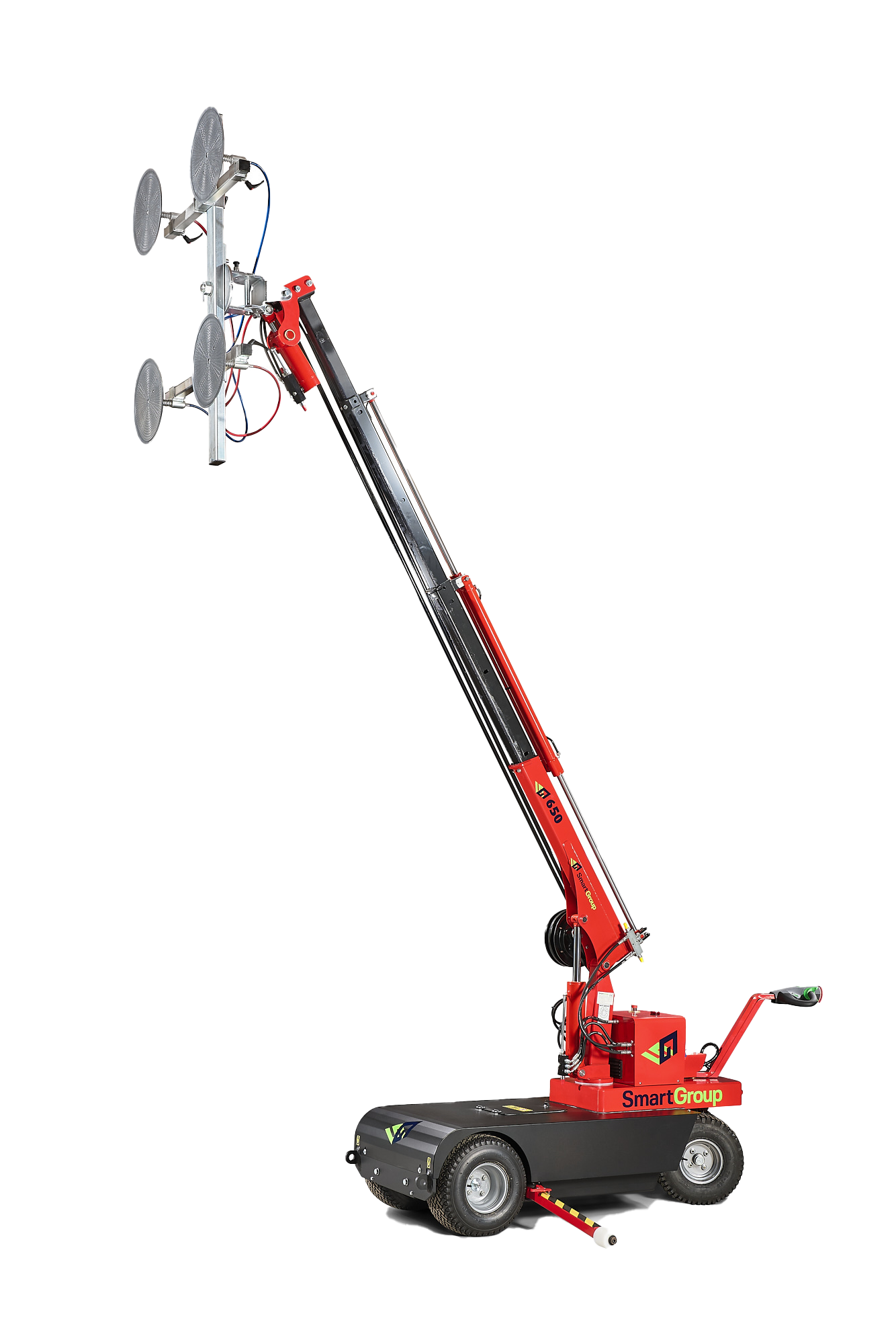

The SG650 is more than just a glass robot. With an impressive working height of up to 5.8 meters and a lifting capacity of 650 kg, it delivers maximum performance, regardless of the complexity of the task. Our lifting equipment is based on state-of-the-art technology, and safety is always our top priority.
- Traction: 2WD front-wheel drive

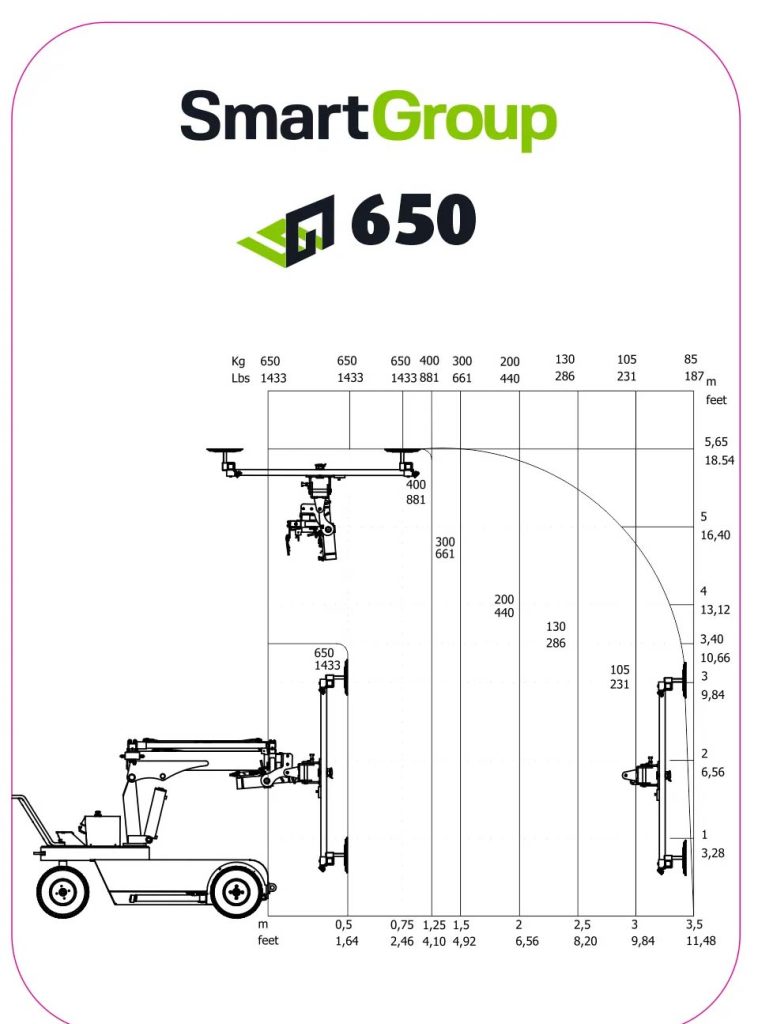

- Maximum height: ~5.8m
- Maximum lateral reach: 3.5m
- Maximum payload: Pick & Carry: 650kg
- Weight: 1,175kg
- Speed: 5km/h
- Dimensions: 2.07×0.89×1.52m
SmartGroup
Danish Smart Group strives to reduce the number of workplace accidents to zero through advanced and safe lifting solutions. Using intelligent technology, they ensure that every lifting operation is carried out as safely and efficiently as possible. Click here for more information.
Benefits
- Powerful hydraulic glass robot with electric drive
- Load capacity up to 650 kg “Pick & Carry”
- Reach: 5.8 m high; 3.5 m in front of the wheels
- Industry’s highest safety features
- Proportional control with potentiometer
- Monitoring with load cells
- Automatic speed reduction when load limit is reached
- Weight display via LED
- Arm with 3 hydraulic telescopic segments
- Radio remote control (optional)
- Incredibly easy operation with swivel/steering arm
- Powerful electric motor with front-wheel drive
- Lowest center of gravity in the industry – for greater stability
- Special tires for difficult terrain
- Approved for indoor and outdoor use
- CE approved
