Terex
CSE 40
Self Erecting Tower Crane
Max jib length: 40 m (131 ft)
Capacity at max length: 1.05 t (1.16 USt) - 1.15 t (1.27 USt) with TPP function
Max capacity: 4.4 t (4.85 USt)
Product overview
The new CSE 40 Self Erecting Tower Crane features a jib length of 40 m (131 ft) and a maximum capacity of 4.4 t (4.85 USt). The new crane design, motors and electronic control definitely improve performances and usability. The fully electronic control ensures an extremely precise setting and crane control and is equipped with new Terex Power Plus (TPP) and Terex Power Match functions.
Tip load is 1.05 t (1.16 USt) and 1.15 t (1.27 USt) with TPP function. The hook height can vary between 25.6 and 32.2 m (84-106 ft). Its swing radius is 2.8 m (9.2 ft).
Terex Self Erecting Tower Cranes
Terex Self Erecting Tower Cranes combine reliability, efficiency, and quick setup for maximum productivity on site. With electric and hybrid options, they deliver quiet, low-emission performance. Backed by global manufacturing and full lifecycle support, Terex ensures safe and sustainable lifting solutions worldwide.
Applications
- Small residential
- Residential & commercial
Transportation

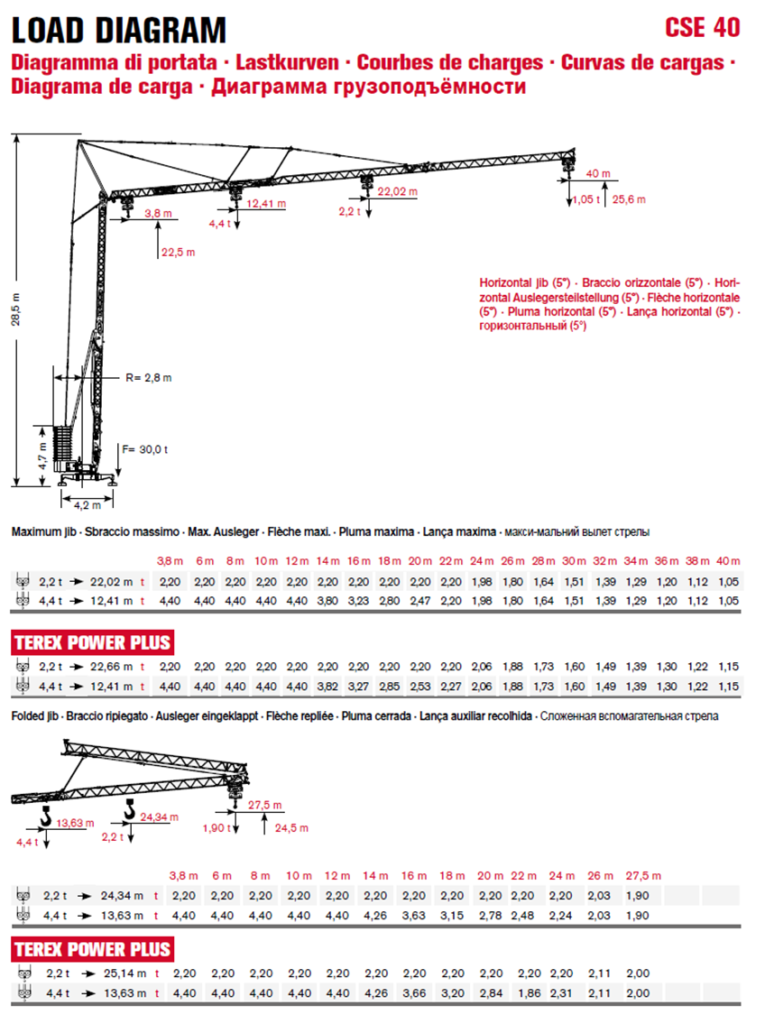

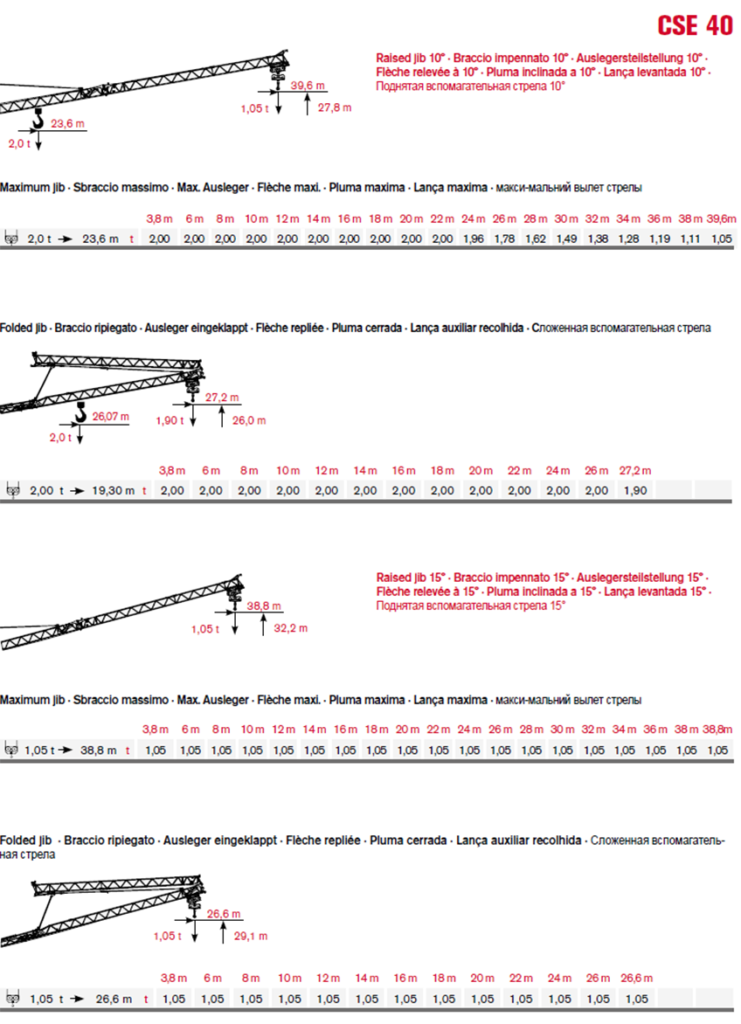

Load Diagram

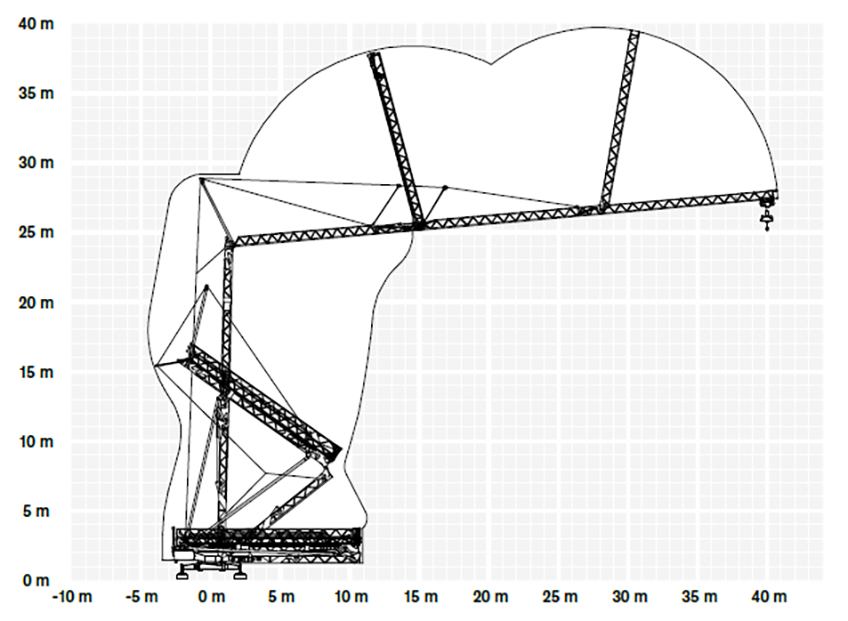

Dimensions
