Klaas
K2500
Aluminium Mobile Crane
Capacity: 3.0000 kg / 6.000kg
Max. hook height: 58.0 m
Max. extension length: 59.0 m
Machine weight: 26.000 kg

Product overview
The K2500 is the new “big one” from Klaas with record-breaking performance values. Thanks to an innovative mast system with triple hydraulically telescoping folding jib and a small footprint of max. 7 m width, the K2500 is the ideal crane for city centres with limited space. The all-rounder is also predestined for covering huge roof areas thanks to its lateral outreach of 45 m with a 500 kg load. The K2500 is particularly impressive with its enormous outreach values in combination with large hook heights in the load range up to three tonnes. The new Klaas top model also achieves impressive heights and reaches as an aerial work platform.
Specifications
- Hook load (stand./opt.) – 3.0 /6.0 t
- Hook height – 58.0 m
- Total weight – ≥ 26 t
- Extension length – 59.00 m
- Support width (min.) – 3.04 m
- Support width (max.) – 7.00 m
- Winch pulling force – 4.500 kg
- Boom (3.000 kg -1.000 kg) – 6.86 – 17.50 m
- Boom (750 kg kg -500 kg) – 17.50 m – 18.75 kg
- Excerpt 4 (500 kg) – 21.77 m

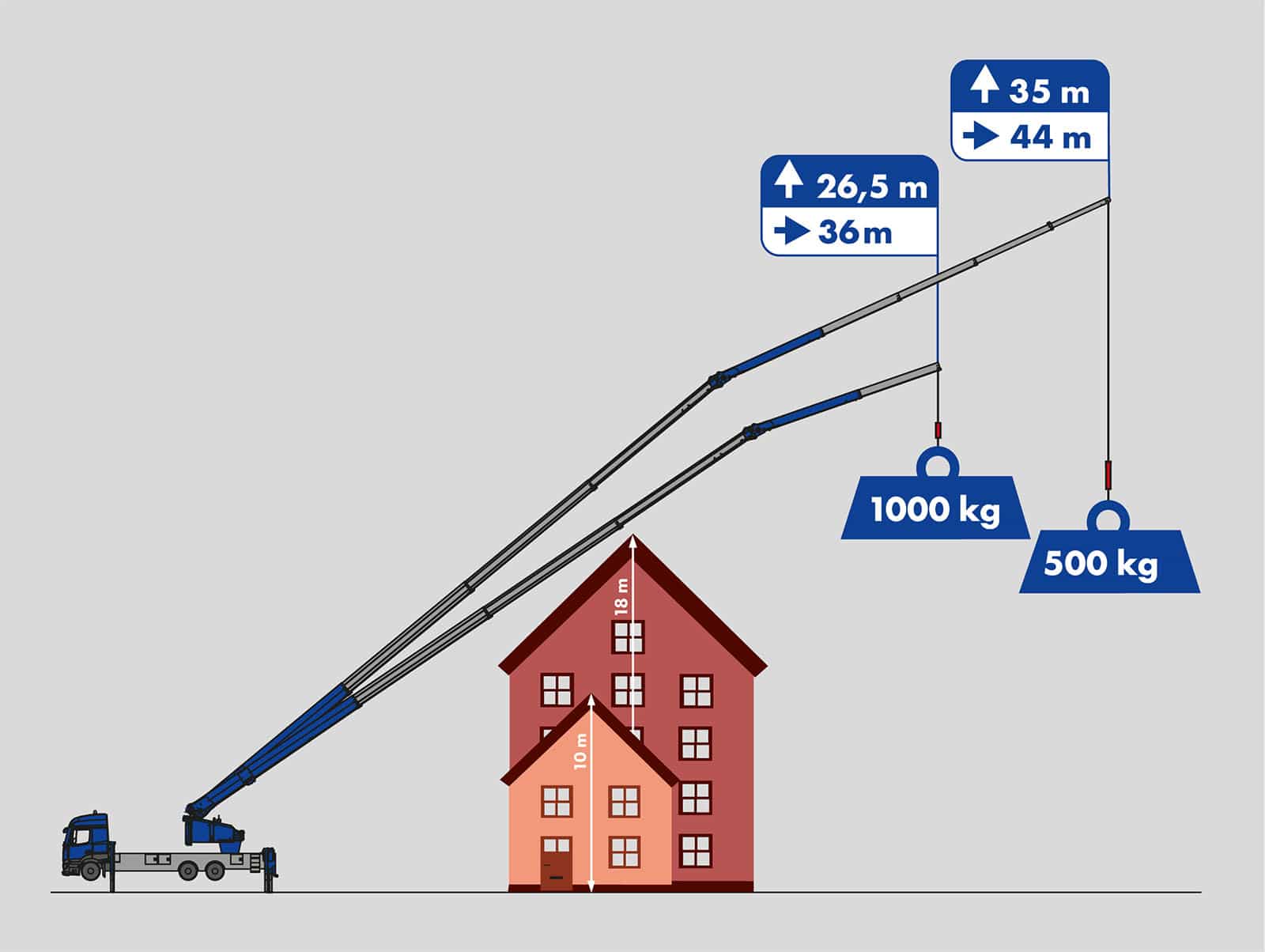

Working area

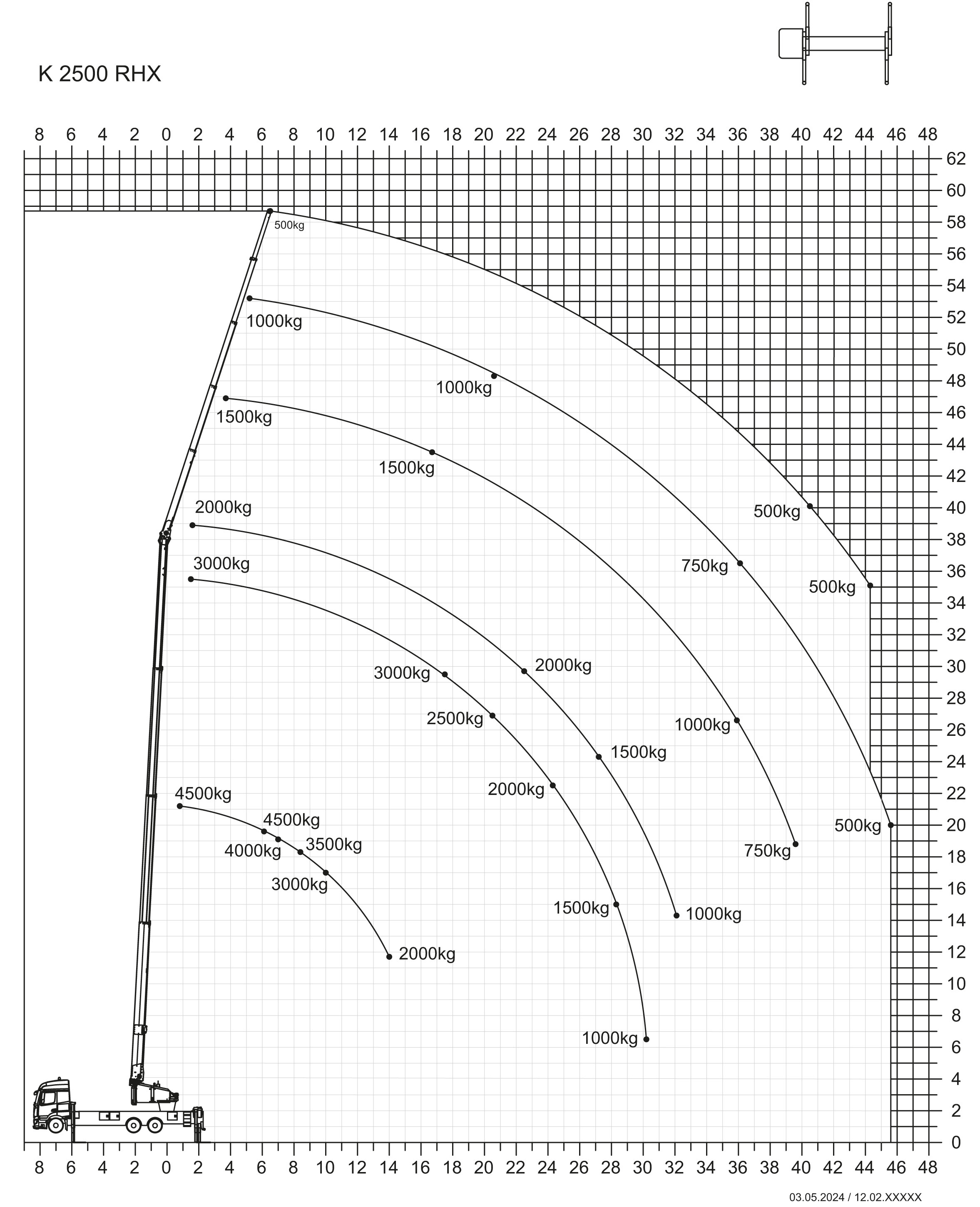

Crane operation
Platform operation
Are you interested in this product?
Gallery
